Heater Control Valve: Service and Repair

Removal:

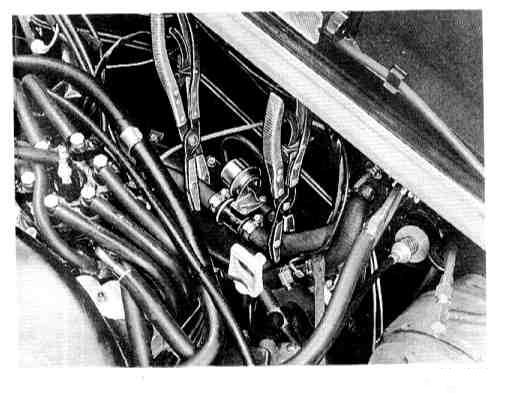

1. Place hose clamp on each side of water valve.
2. Remove vacuum hose.
3. Remove hose clips
4. Remove water valve.

Installation:
1. Install water valve. Tighten clips.
2. Install vacuum hose.
3. Remove hose clamps.
4. Top up with coolant as required.
