PC. Signal Description DI EZ 116 K
PC. Signal description DI EZ 116 K
All values displayed below are between the terminal in column 1 and terminal 20. Ensure that this grounding point is properly connected to the negative battery terminal before readings are taken.
Ubat = battery voltage
f = frequency in hertz (Hz)
Ulow = voltage close to 0 V
% duty = dutycycle in %
DI Pins 1-15 (Part 1 Of 2):

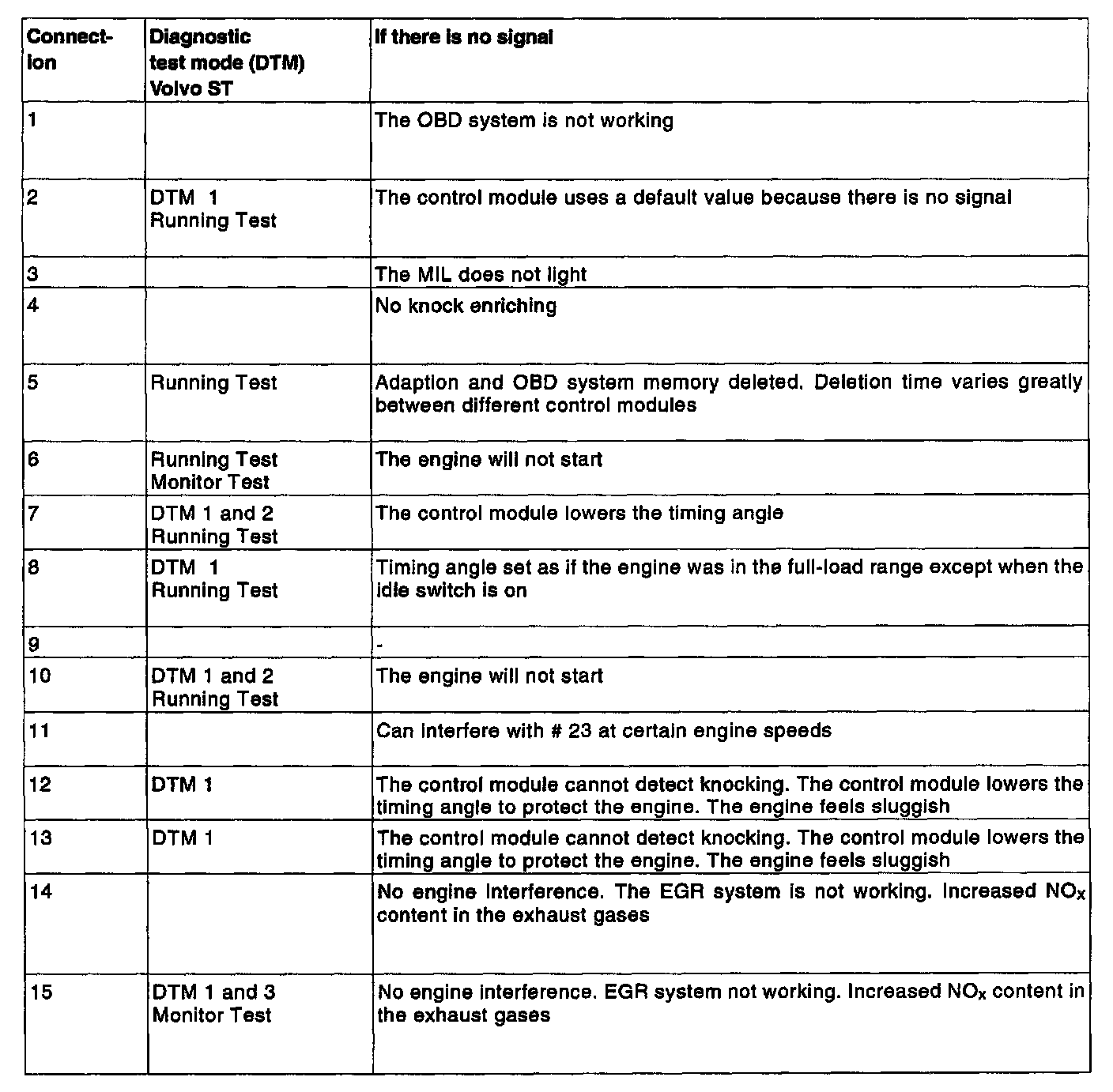

DI Pins 1-15 (Part 2 Of 2):

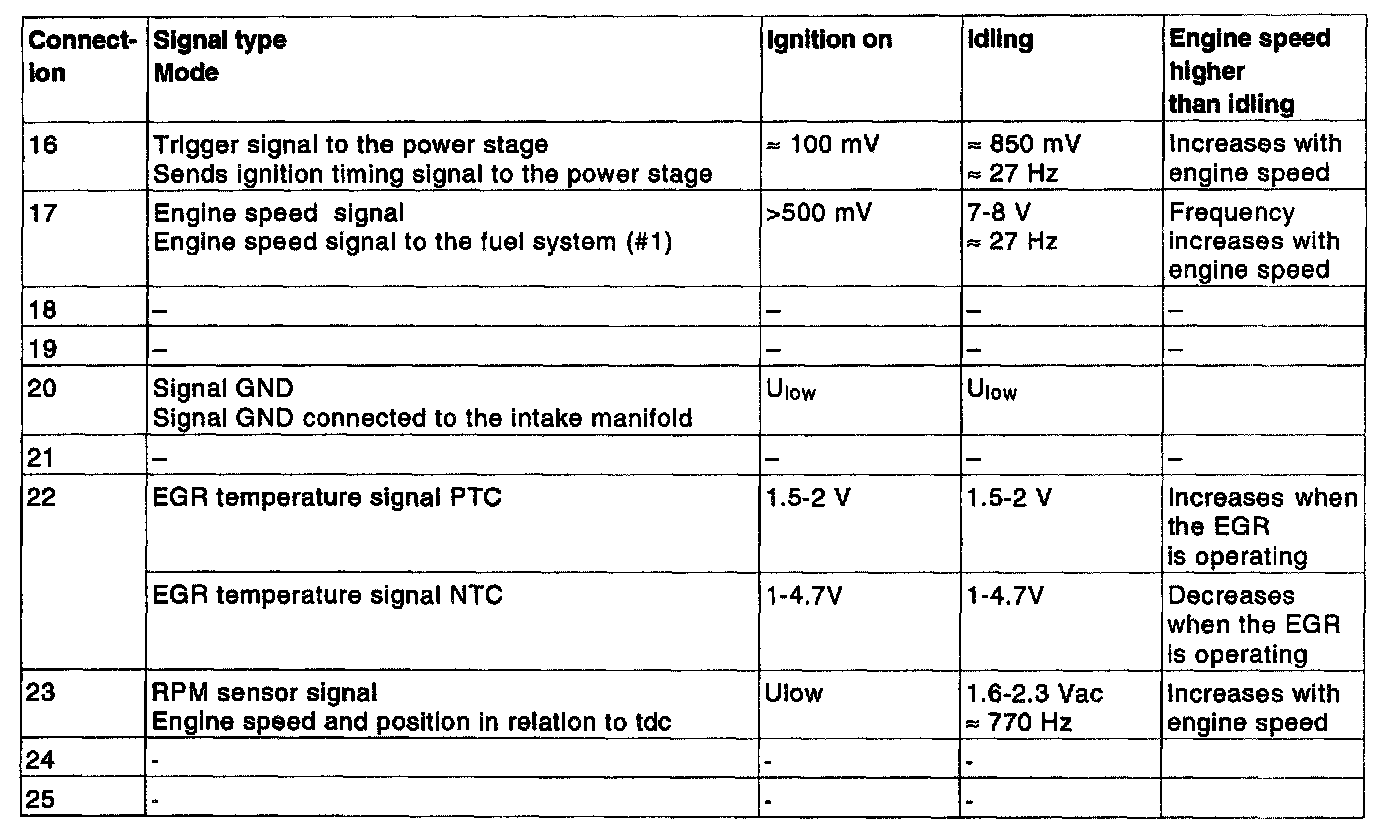

DI Pins 16-25 (Part 1 Of 2):

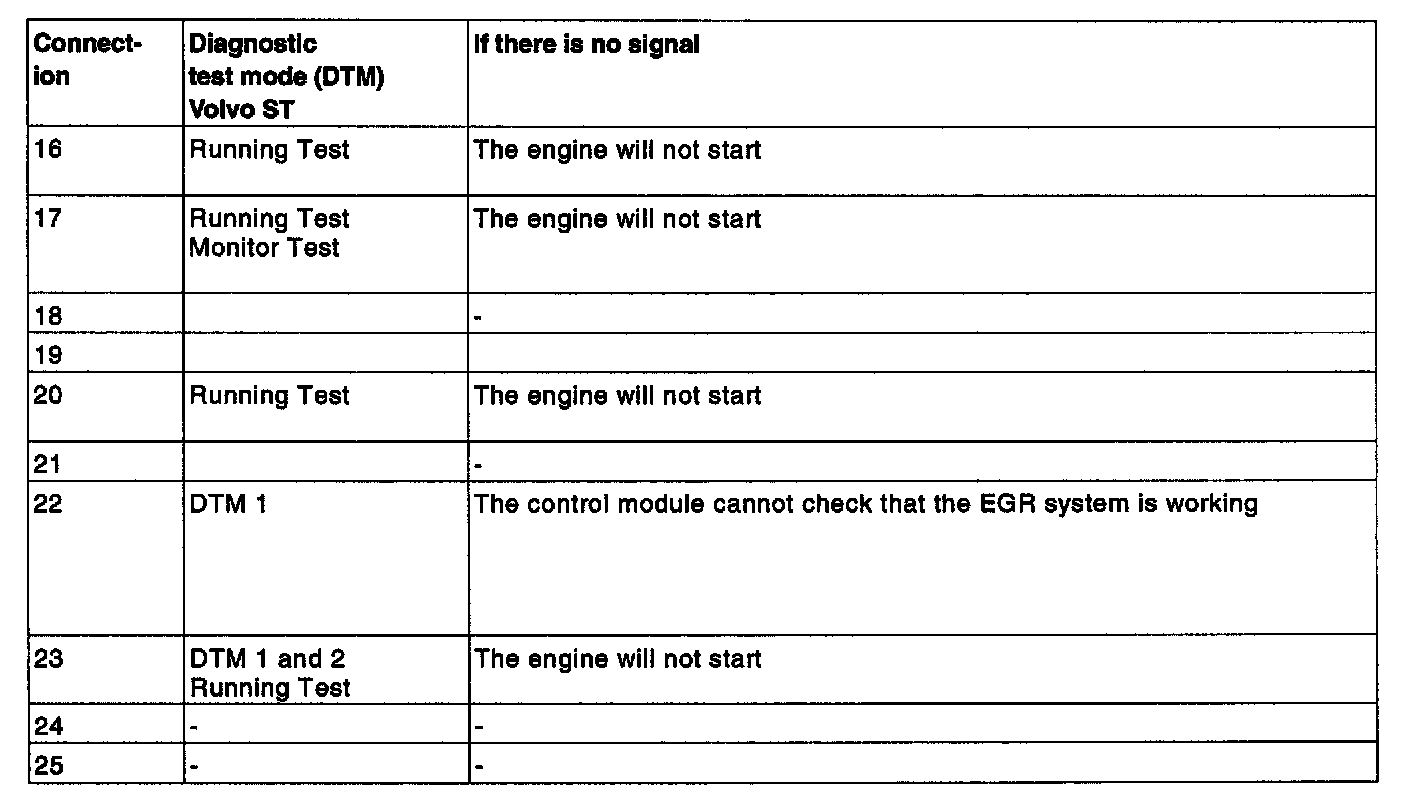

DI Pins 16-25 (Part 2 Of 2):
