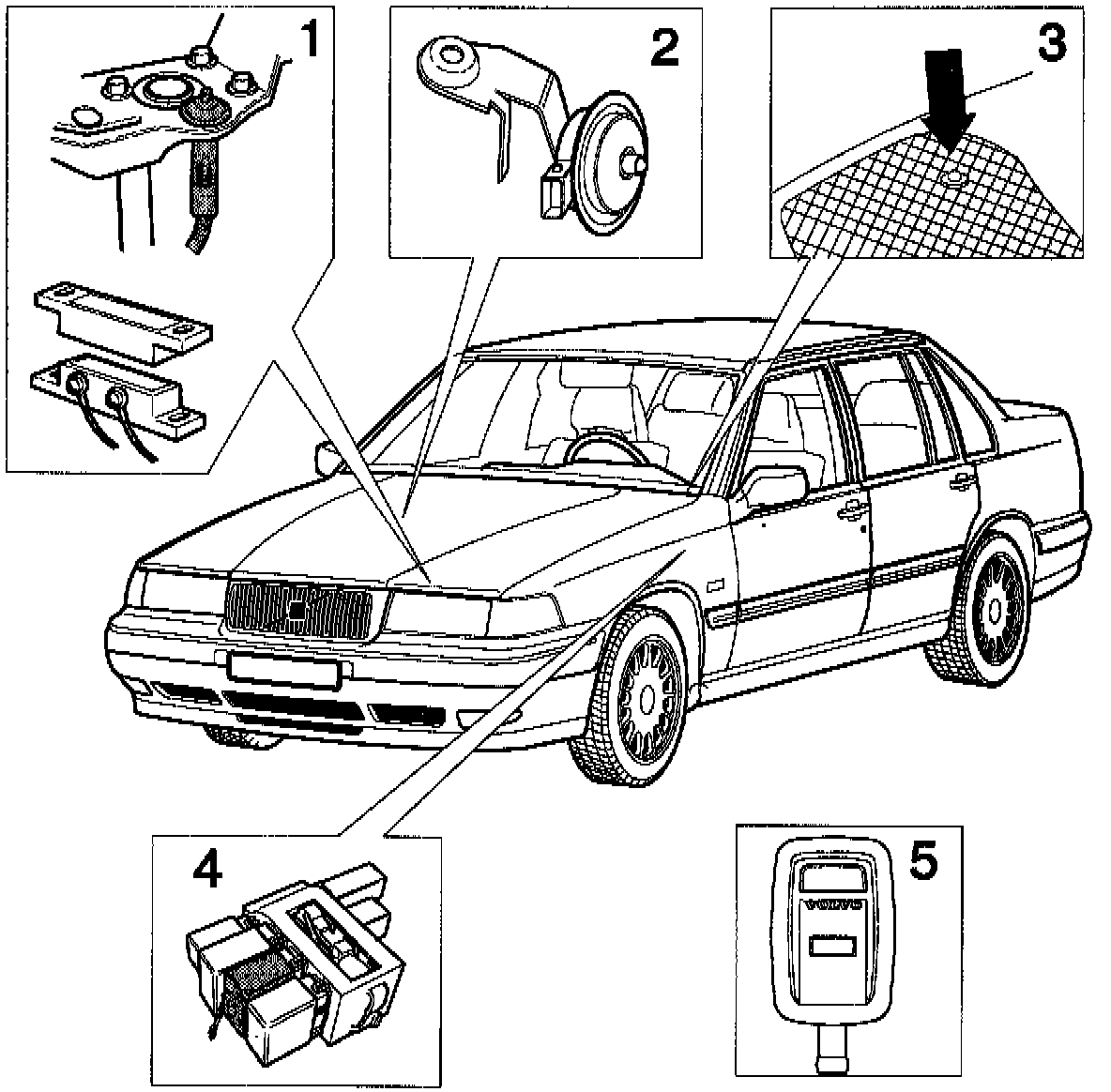

Preliminary Information
1. Hood contact switch or magnetic switch.
2. Horn (or siren)
3. Indicator LED, on left or right speaker grill
4. Control module with built-in radio sensor and wiring, item C/F
5. Remote handset Guard Alarm II
The alarm wiring is connected to the three extension connectors (2-, 4- and 8-pole) for alarm at the steering column. The alarm control module is connected to this wiring. There is separate wiring in the engine compartment for the magnetic switch and horn.
