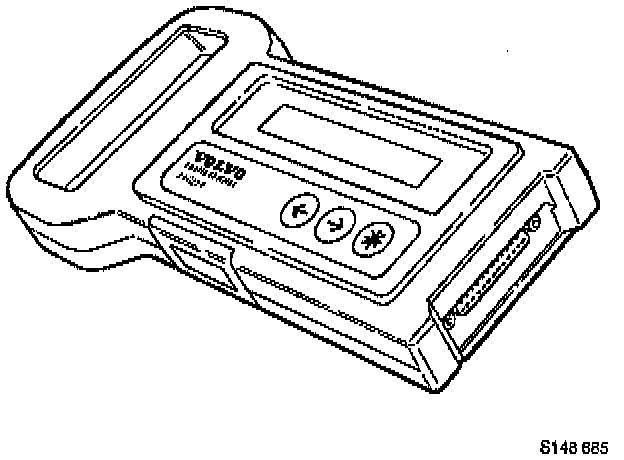

Using the Volvo Scan Tool (ST)

CONNECTION AND INITIALIZATION
1. Ignition off.
2. Insert memory cassette for the model concerned in the plain text decoder.
3. Connect connector cable to DLC.
4. Ignition on.
5. Use the arrow keys to call up 'ABS' in the display window. Press * to call up 'ABS 900'. Then use arrow keys.

NOTE: The instructions on using DTMs in conjunction with the ST are given on the following pages as menus and symbols.

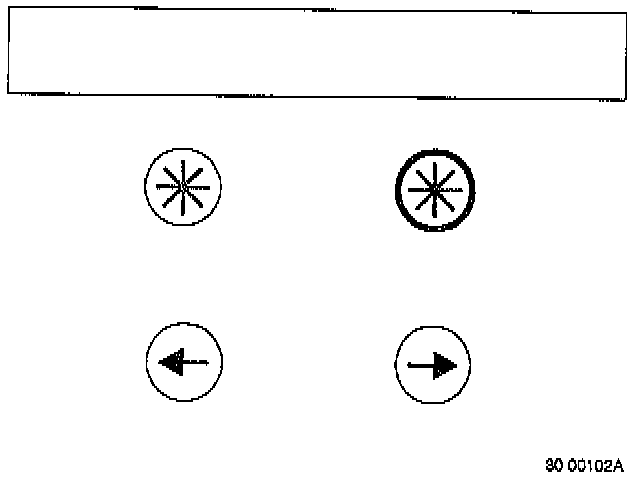

SYMBOLS
Normal outline = press * briefly, scroll back.
Bold outline = press * and hold down, scroll forwards.
The arrow keys scroll text backwards and forwards in the display (scroll sideways). For more information, see the ST instruction manual.
