Tables/Charts

NOTE:
- DTC 1-6-1, as in Tables 4-7 below, means there is a fault in the instrument panel.
- Read off DTCs again.
- If DTC 1-6-1 reoccurs, install new instrument panel. Service and Repair

Information and Checks:

Table 1, 1-2-1 Distance Covered Since Last Service:

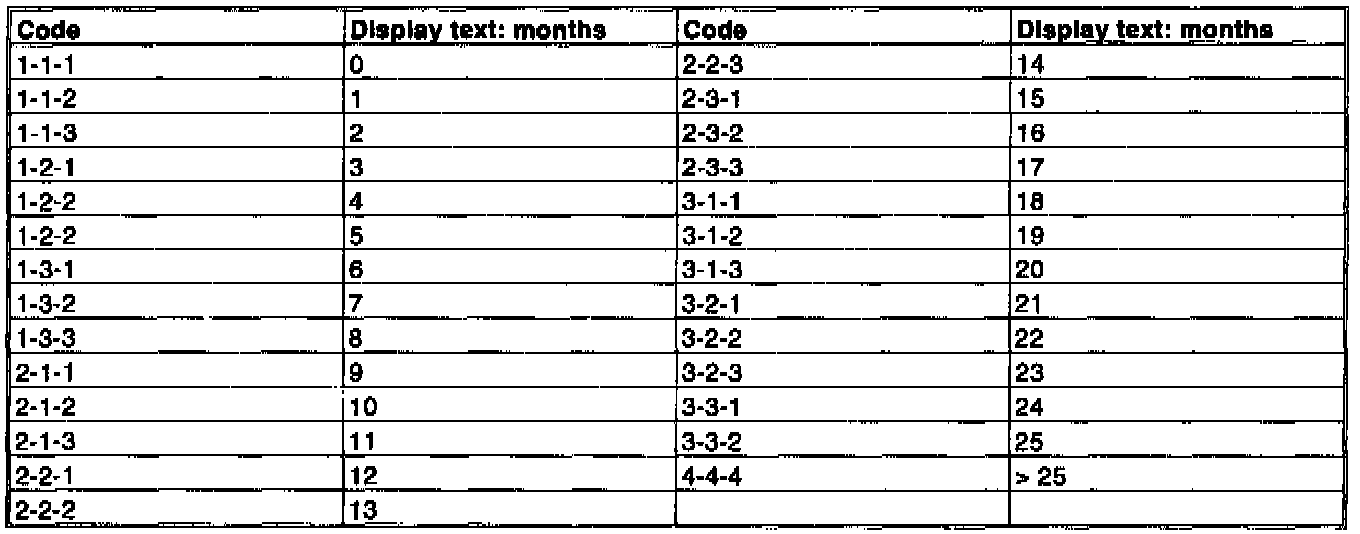

Table 2, 1-2-2 Time Since Last Service:

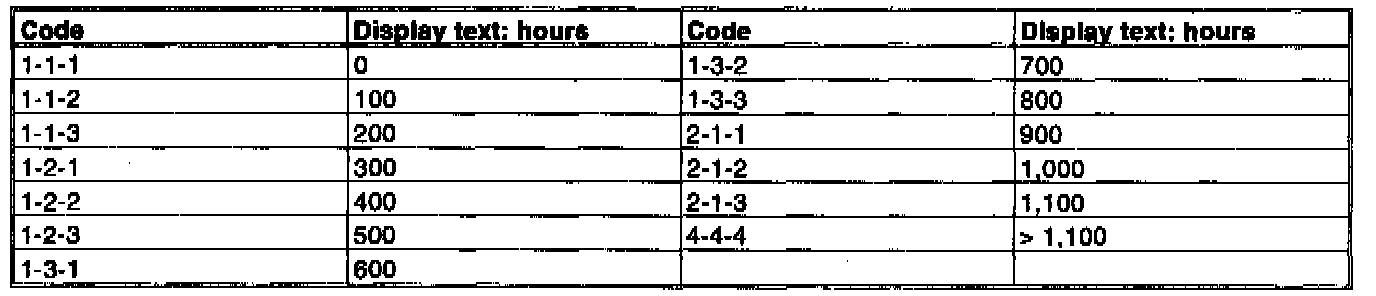

Table 3, 1-2-3 Number of Engine Running Hours Since Last Service:

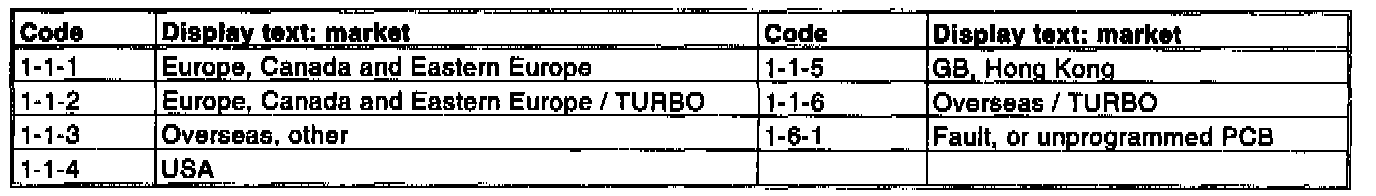

Table 4, 1-2-4 Speedometer, Market Version:

Table 5, 1-3-1 Distance for Activating Service Lamp:

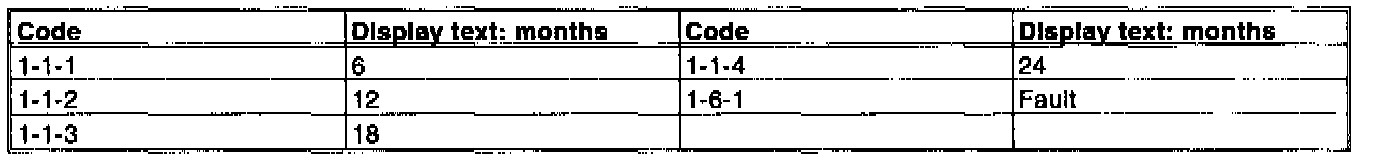

Table 6, 1-3-2 Calendar Time Interval for Activating Lamp:

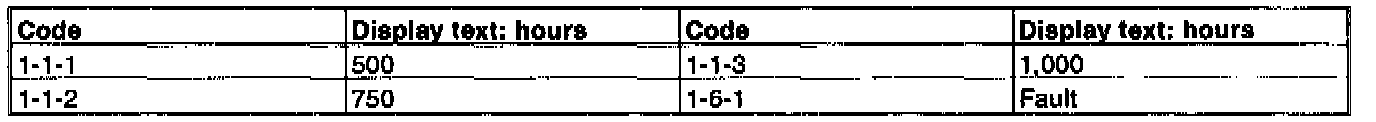

Table 7, 1-3-3 Engine Time Interval for Activating Service Lamp:
