Disabling the Start Inhibitor
NOTE: First check whether the other remotes work and that the batteries are in order.Disabling the start inhibitor (only if necessary)
NOTE: If the alarm is activated and cannot be deactivated, but the car has to be moved to a repair shop for fault tracing, the start inhibitor should be disabled.
1. Ignition off.
2. Disconnect the control module (item C/F).
3a. Bridge 50E and 50F on the alarm relay base.

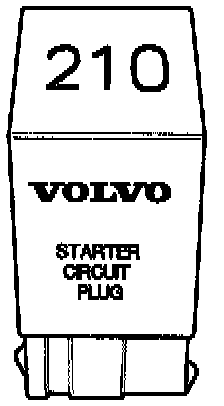

3b. Alternatively use Starter Circuit Plug, P/N 3545333 which is inserted in the control module relay base C.
The start inhibitor will then be disabled. (Starter will not work.)
- Commence fault tracing as per step M1. Step M1
