Main Relay (Computer/Fuel System): Locations

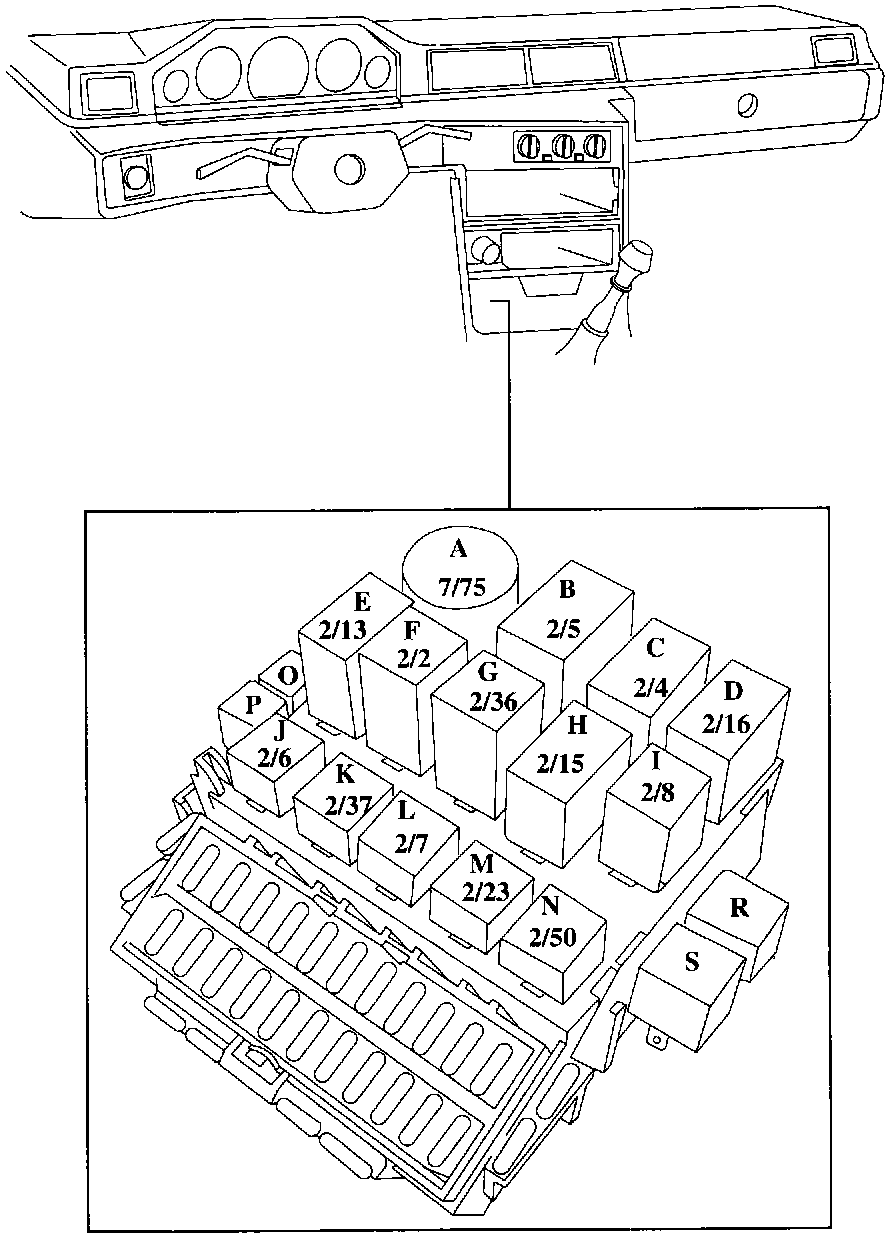

Relay Identification and Location

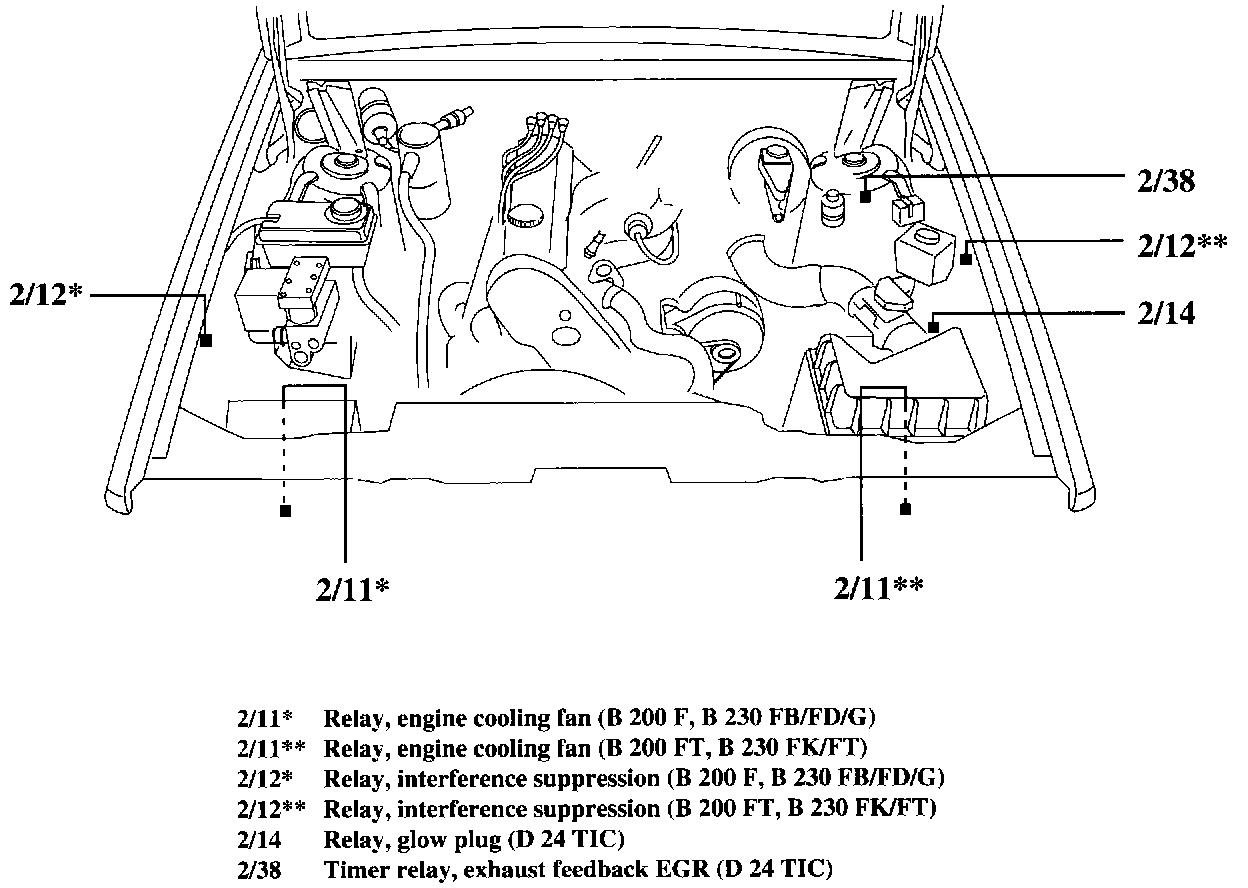

Relays In Engine Compartment




Relays In Electrical Distribution Unit



A Bulb failure warning sensor (7/15)
B Seat belt reminder/key warning (2/5)
(USA, Canada, Korea)
C Windshield Wiper intermittent relay (2/4)
D Tailgate wiper intermittent relay (2/16)
E Fuel injection (2/13)
F Foglights, front (2/2)
G Headlight flasher (2/36)
H Exhaust temp. sensor (2/15) (Japan)
I Overdrive (2/8)
J Overload relay 151 (2/6) (power windows/seat heater)
K Headlight (2/37)
L Central lock (2/7)
M Fuel injection (2/23)
N Overload relay high beam (2/50) (not USA, Canada)
O -
P -
R -
S -
