PB. Signal Description MFI LH 2.4

PB. Signal description MFI LH 2.4

All values displayed below are between the terminal in column 1 and terminal 5, unless otherwise indicated in brackets. Ensure that this grounding point is properly connected to the negative battery terminal before readings are taken.

Ubat = battery voltage
f = frequency in hertz (Hz)
Ulow = voltage close to 0 V
% duty = dutycycle in %

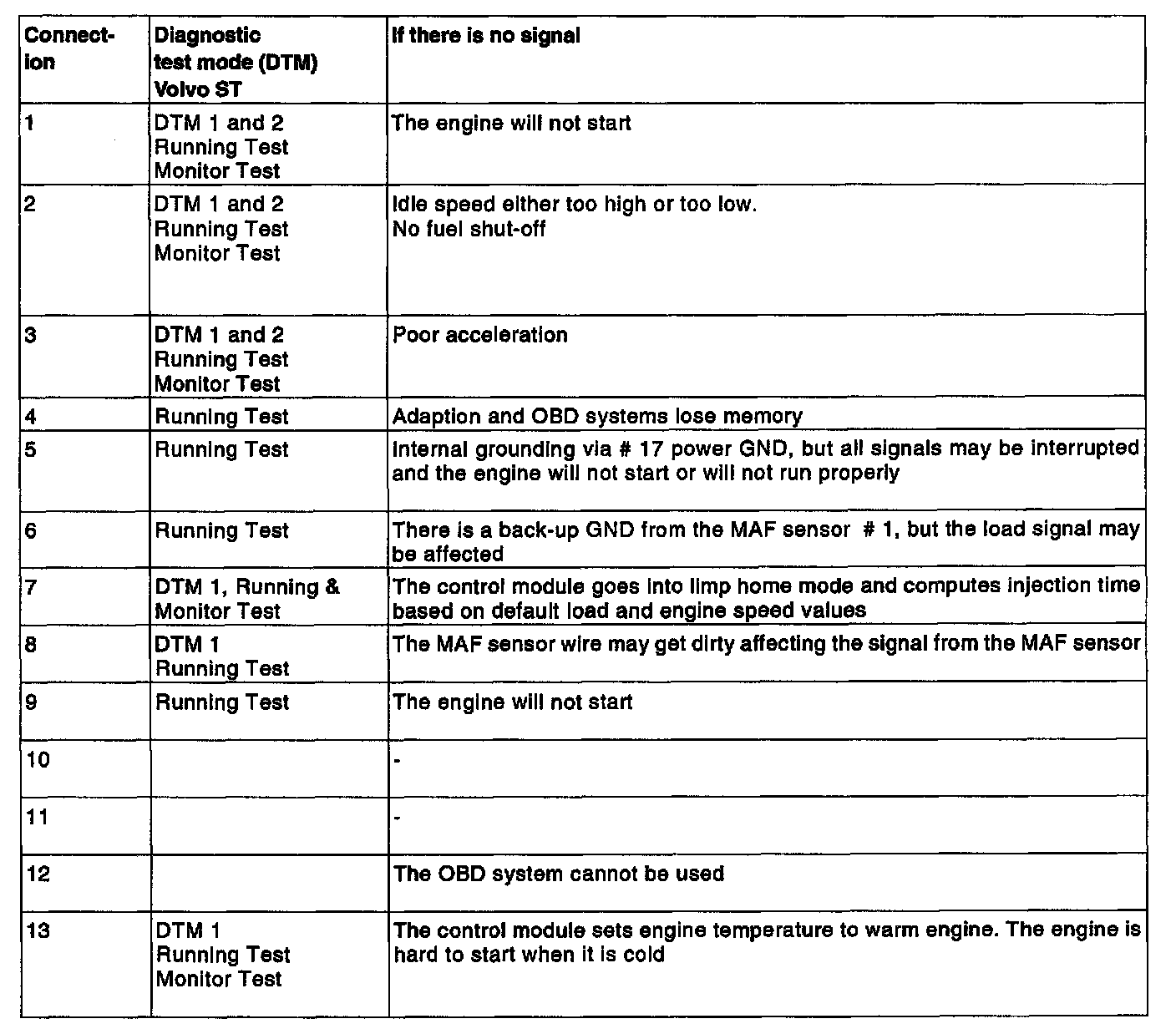

MFI Pins 1-13 (Part 1 of 2):

MFI Pins 1-13 (Part 2 of 2):

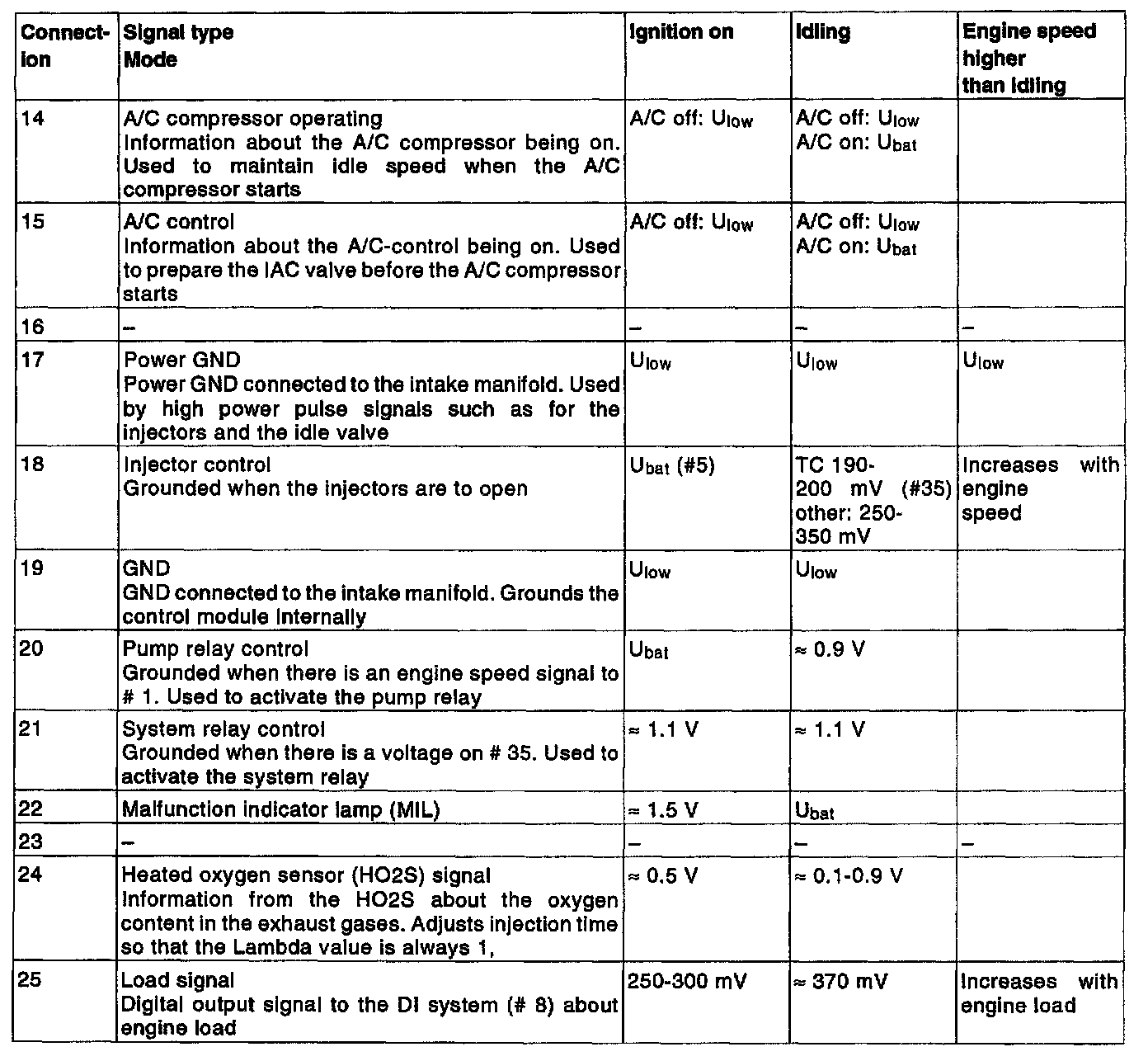

MFI Pins 14-25 (Part 1 Of 2):

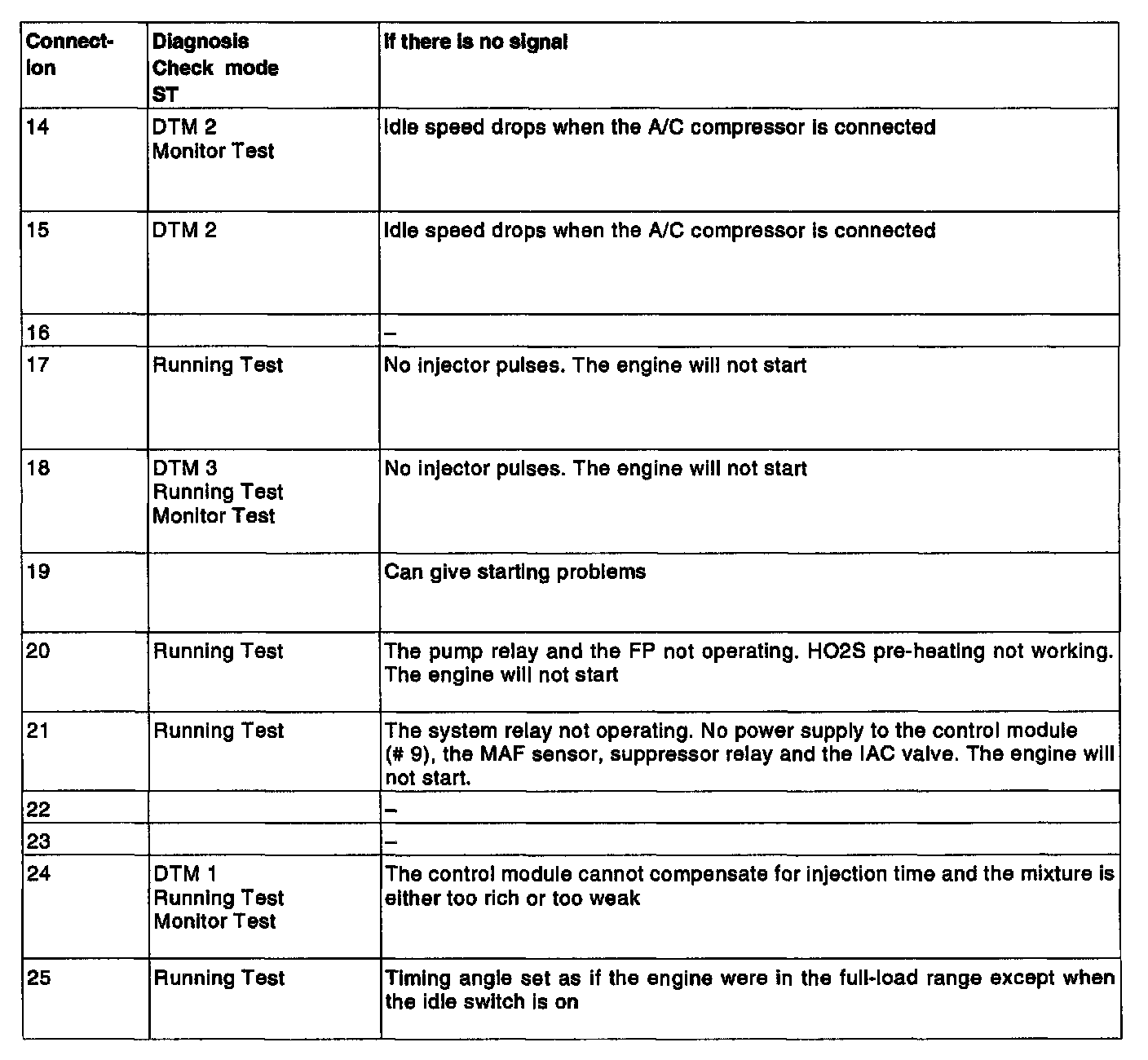

MFI Pins 14-25 (Part 2 Of 2):

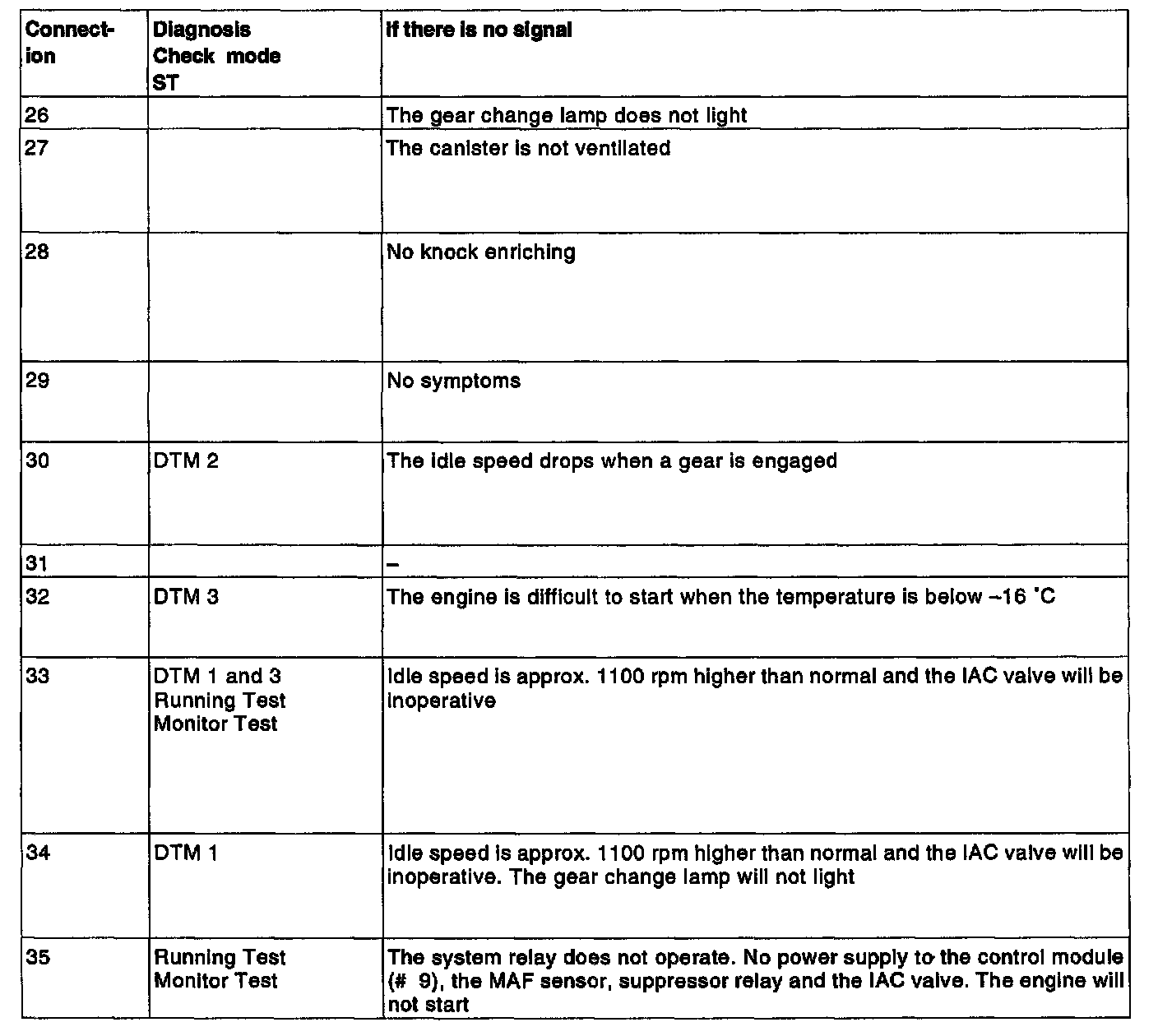

MFI Pins 26-35 (Part 1 Of 2):

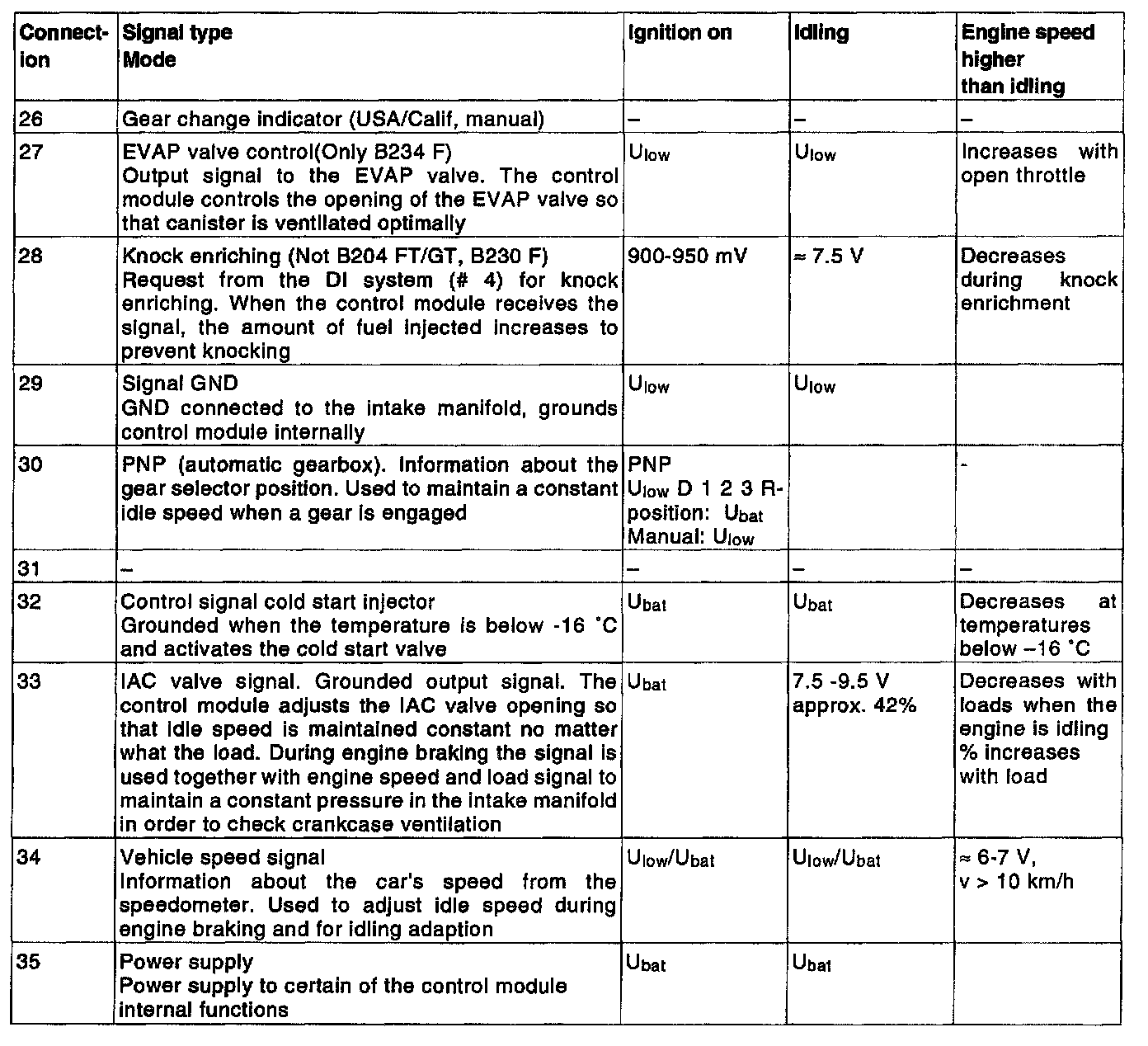

MFI Pins 26-35 (Part 2 Of 2):
