Guard Alarm II Control

Guard Alarm II Basic Components:

4. Alarm Control Module

Guard Alarm II System Relay:

The control module is located on the relay plinth (position 210/211) in the passenger compartment relay center. The sensor and indicator LED are connected to the control module via a separate lead to the top of the control module. The control module contains a pro-programed microprocessor which can be reprogramed for different functions. Amongst other things, the microprocessor can take up to 4 different key codes/remote controls.

Inhibitor Integral In Relay Plinth 210-50F:

There are three built-in relays for:
Start inhibitor
Visual signal
Audible signal

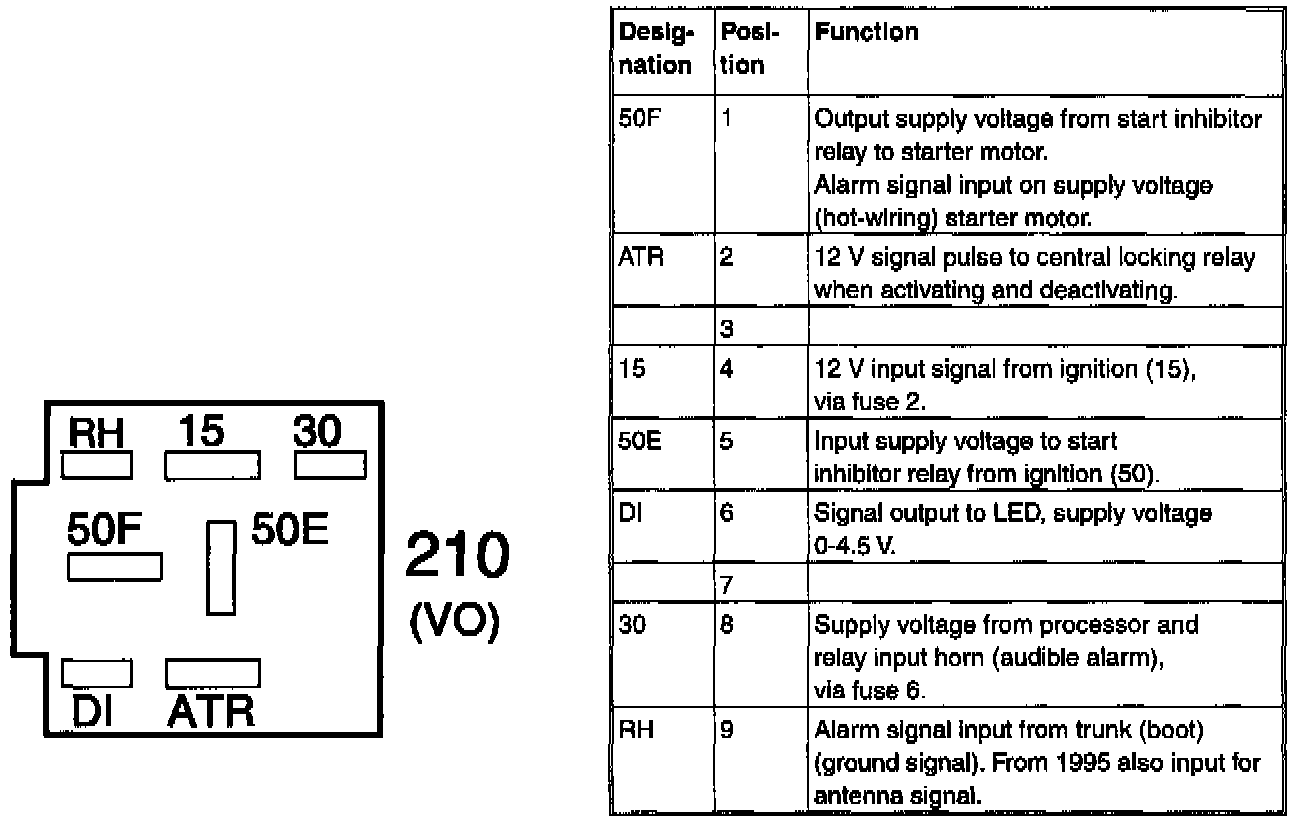

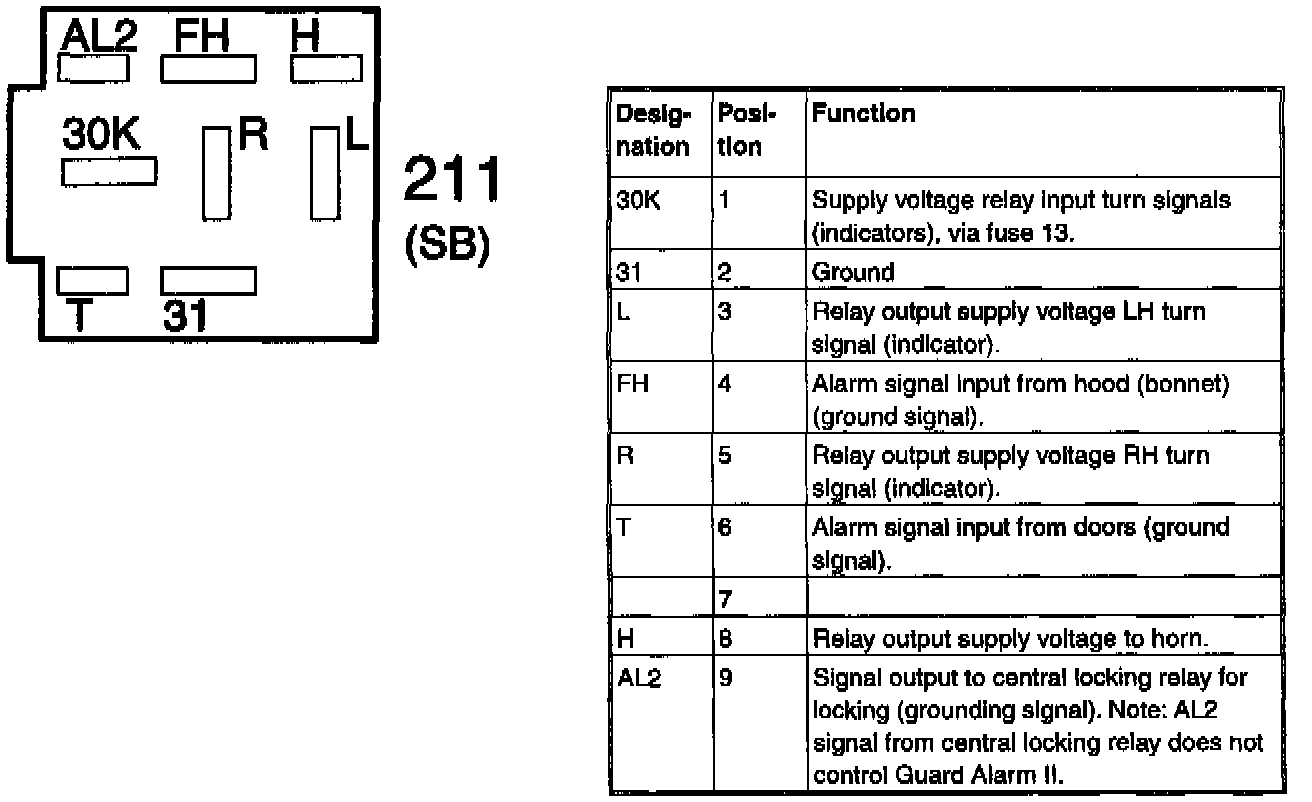

Guard Alarm II Relay/Module 210-211:
