Guard Alarm I Outlined

Relay plinth 210 ('B' in wiring diagrams)

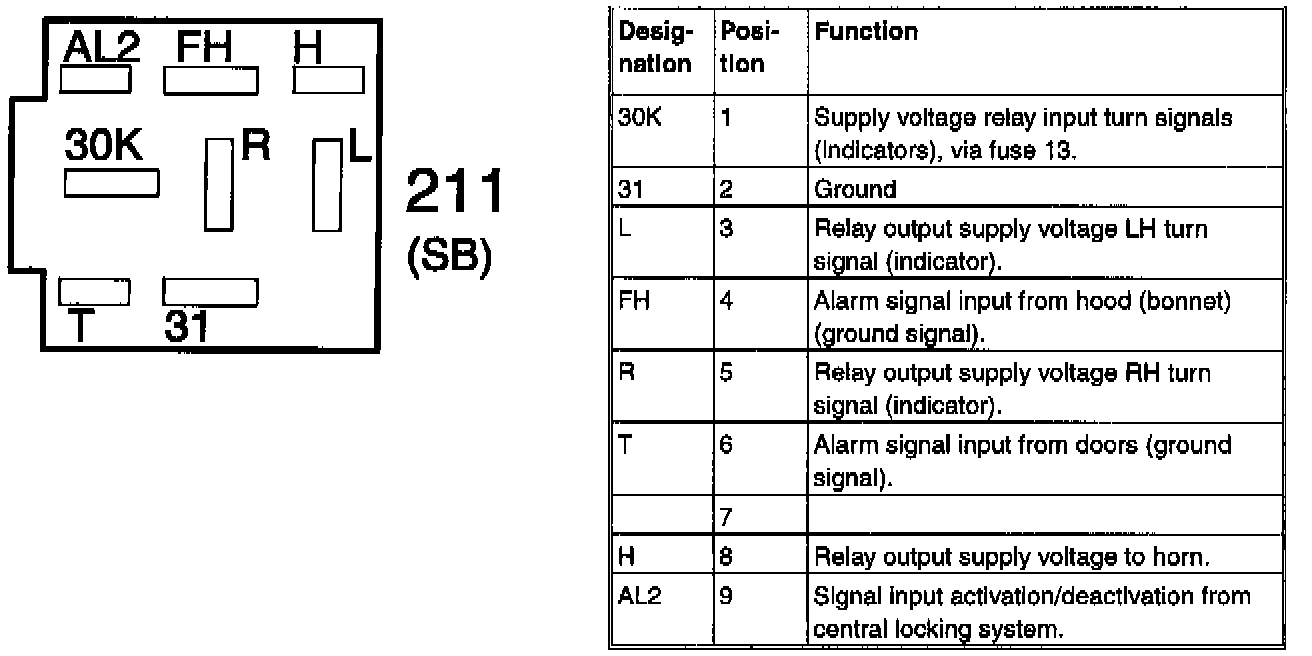

Relay plinth 211 ('A' in wiring diagrams)

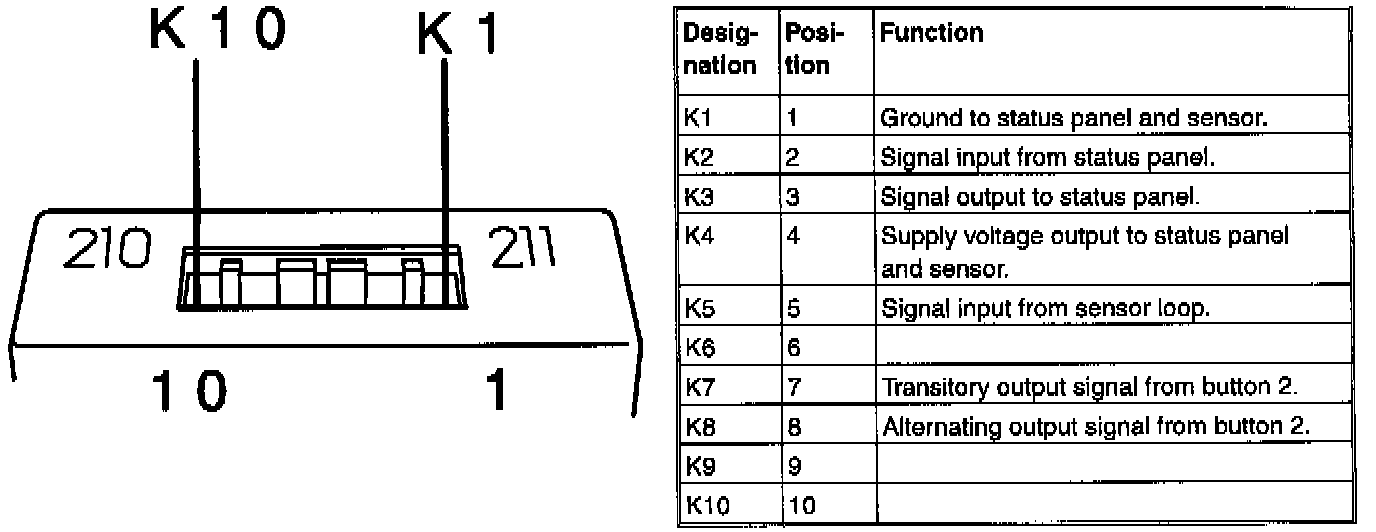

10-pin plinth on top of control module

Inhibitor Integral In Relay Plinth 210-50F (Relay/Module):

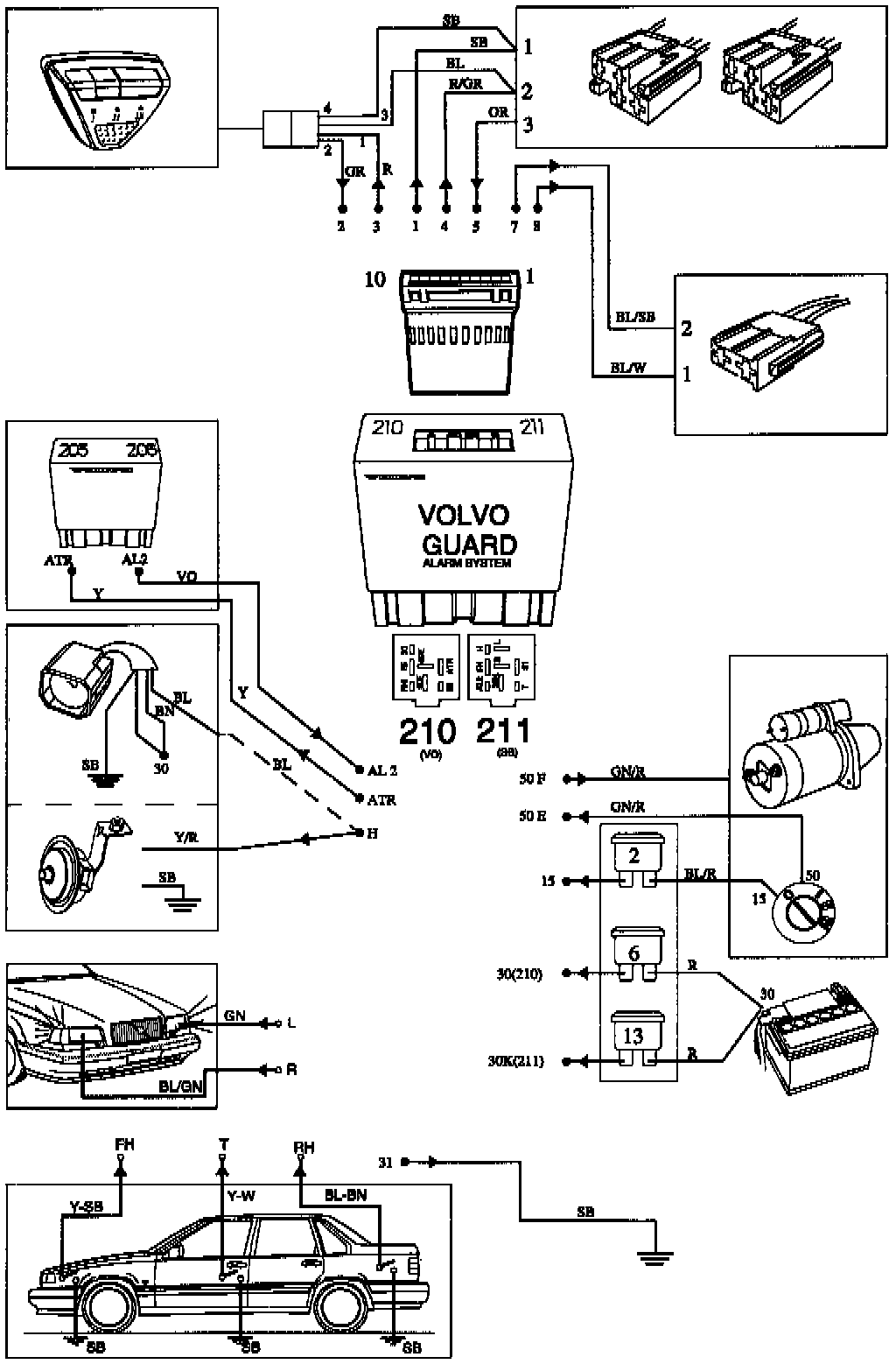

Guard Alarm I Outline Wiring Diagram


NOTE: Be careful to check the wiring diagram for the model you are actually working on as there may be some differences in designations of connectors etc.
