Control Panel, Replacement

Control panel replacement

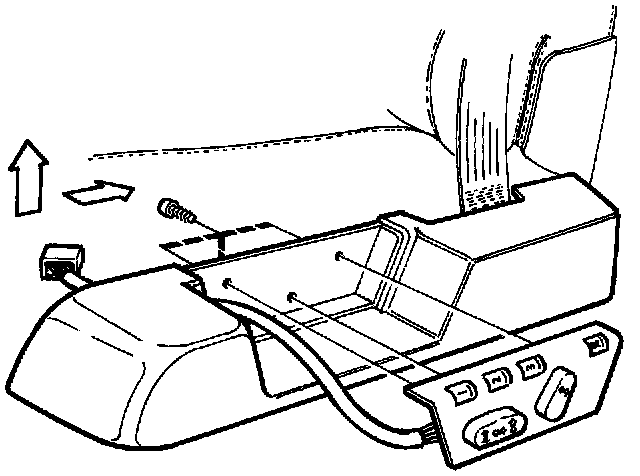

Removing
Make a note of radio code if anti-theft coded radio is installed.

Remove:
- Battery negative lead.
- The 4-pin connector from control module (underneath the front edge of the seat).
- Side storage compartment from the seat. Raise forward end and push back.
- The three screws on the back of the side compartment.

Reinstalling
Reinstall in reverse order.
