High and Low Beam

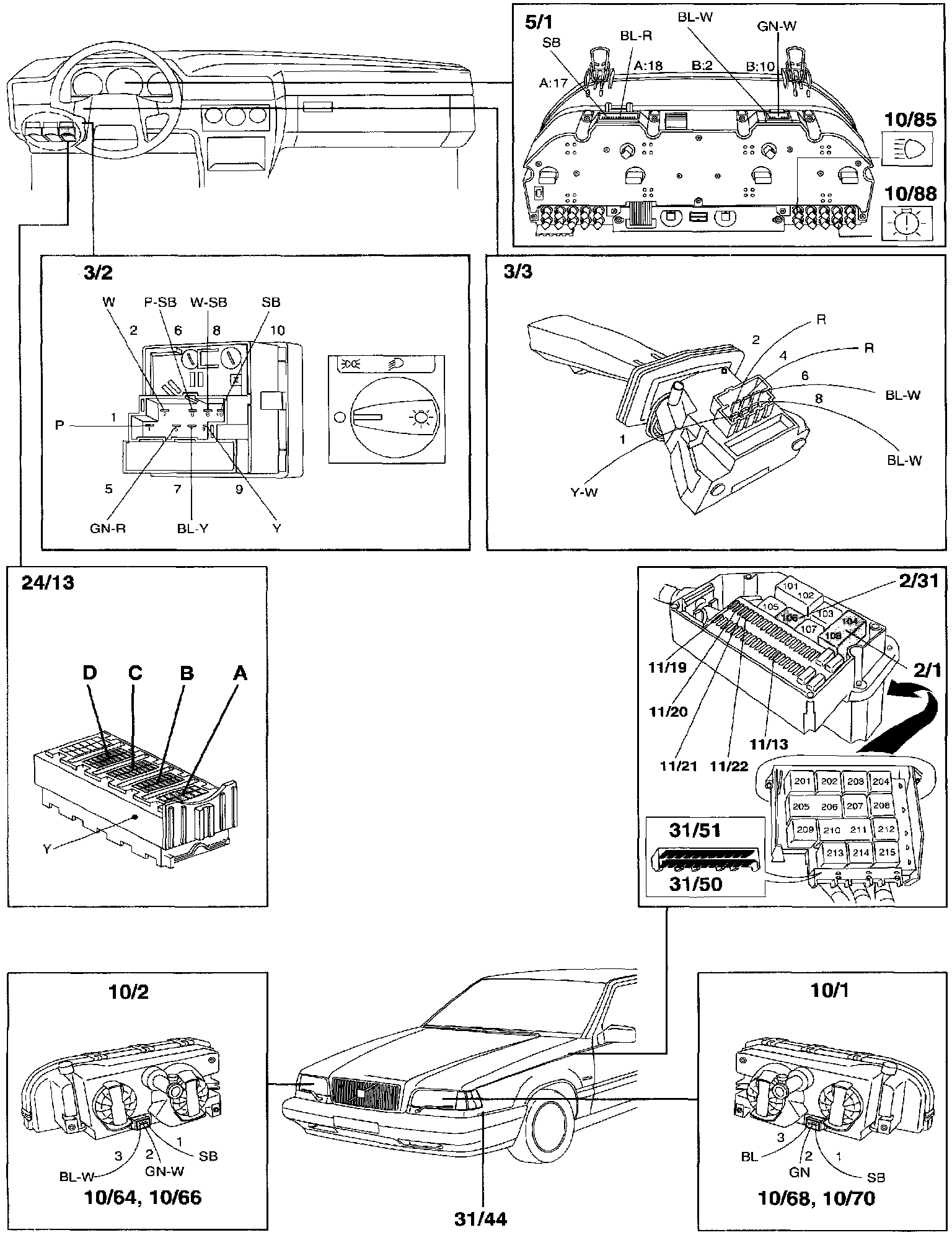

Component Location




Wiring Diagram




Function Diagram - USA




Fuction Diagram - Canada

Component I.D. List
2/1 Main headlight relay with bulb failure warning sensor
2/31 Overload relay 15+
3/2 Light switch
3/3 Switch, turn signal/high and low beam
5/1 Combined instrument panel
10/1 Left front light
10/2 Right front light
10/64 Right high beam
10/66 Right low beam
10/68 Left high beam
10/70 Left low beam
10/85 Warning lamp, high beam
10/86 Warning lamp, oil pressure
11/13 Fuses
11/19 Fuses
11/20 Fuses
11/21 Fuses
11/22 Fuses
24/13 Connector
Engine compartment harness - instrument panel harness
31/44 Ground point, engine compartment (ground point, battery - body)
31/50 Ground point, central electrical unit, power ground
31/51 Ground point, central electrical unit, signal ground
