With California Emissions (Emissions Code G1)

Special tools: 9812270, 9812273, 981 2282, 999 5480, 999 5484

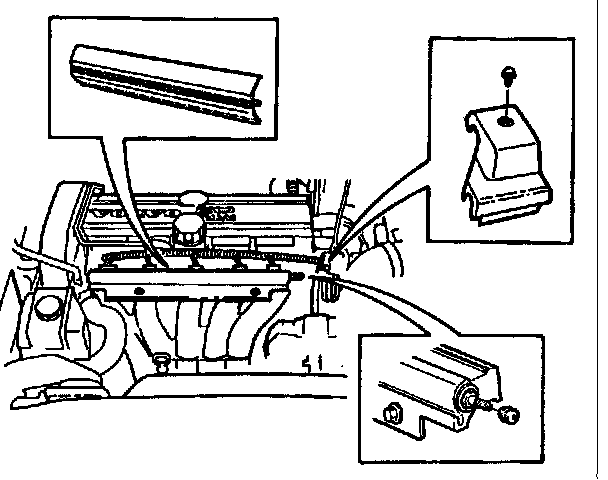

Removing Covers
Remove:
- Throttle pulley cover.
- Cap from valve on fuel rail.

Fuel Rail Service Port:

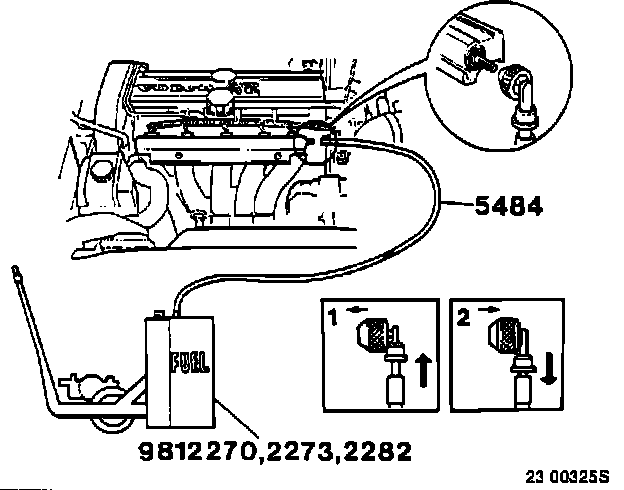

Connecting
- Connect adapter 999 5484 to fuel draining unit 981 2270981 2273 and 981 2282.
- Connect adapter to valve on fuel rail in locked position (image inset #1 valve closed).
- Start fuel drainage unit.
- Unlock adapter (image inset #2 valve open).
- Raise the car.





Draining Fuel System
Remove:
- Cap from valve on fuel filter.
- Connect venting hose 999 5480 to valve upstream of fuel filter.
- It takes approx. 2 minutes to drain the system.

Installing
- Reinstall components in reverse order.

CAUTION: Remember to refit valve caps.
