Connection of ST

CB. Connection of ST

CB1 Connecting the ST






- Switch off ignition.
- Insert memory cassette.

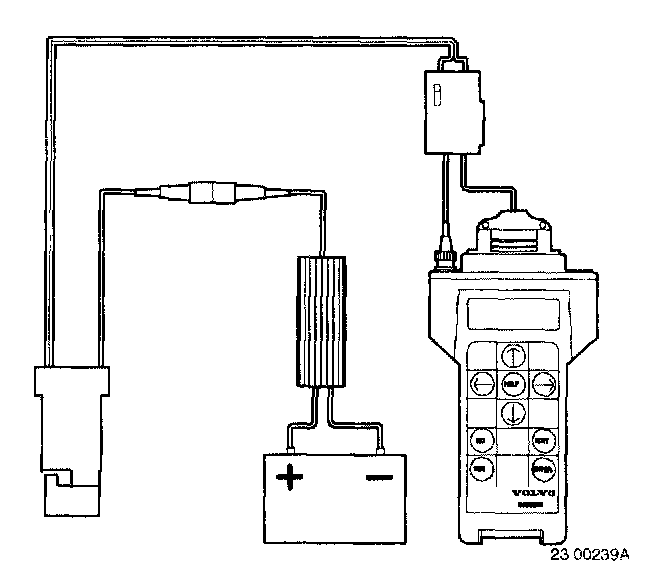

- Connect adapter lead to ST and to DLC A.
- Connect voltage supply lead to battery and adapter lead.
- Set switch on adapter lead box to ON.
