Adjusting Steering Wheel Position

Zeroing Contact Reel
- Remove steering wheel module and steering wheel. Steering Wheel Module, Contact Reel - Replacement




- Remove screw from contact reel lock position.




- Turn the contact reel fully to the left.




- First turn the contract reel back two (2) full turns to the right. Then continue turning the contact reel in the same direction, three quarters (3/4) of a turn to the screw hole.

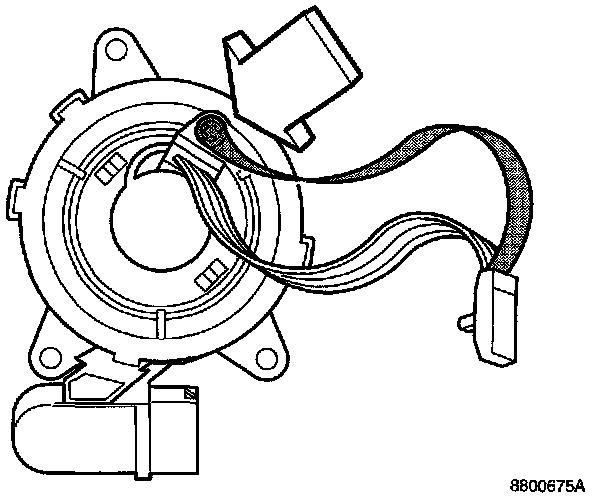

The screw hole should be over the lock position "1 o'clock" as illustrated.




- Install screw in contact reel lock position. The contact reel is now zeroed and locked (secured).

Installing Steering Wheel And Steering Wheel Module
- Install steering wheel and steering wheel module. Steering Wheel Module, Contact Reel - Replacement
