Wiper Relay: Locations

Fuse/Relay Identification and Location

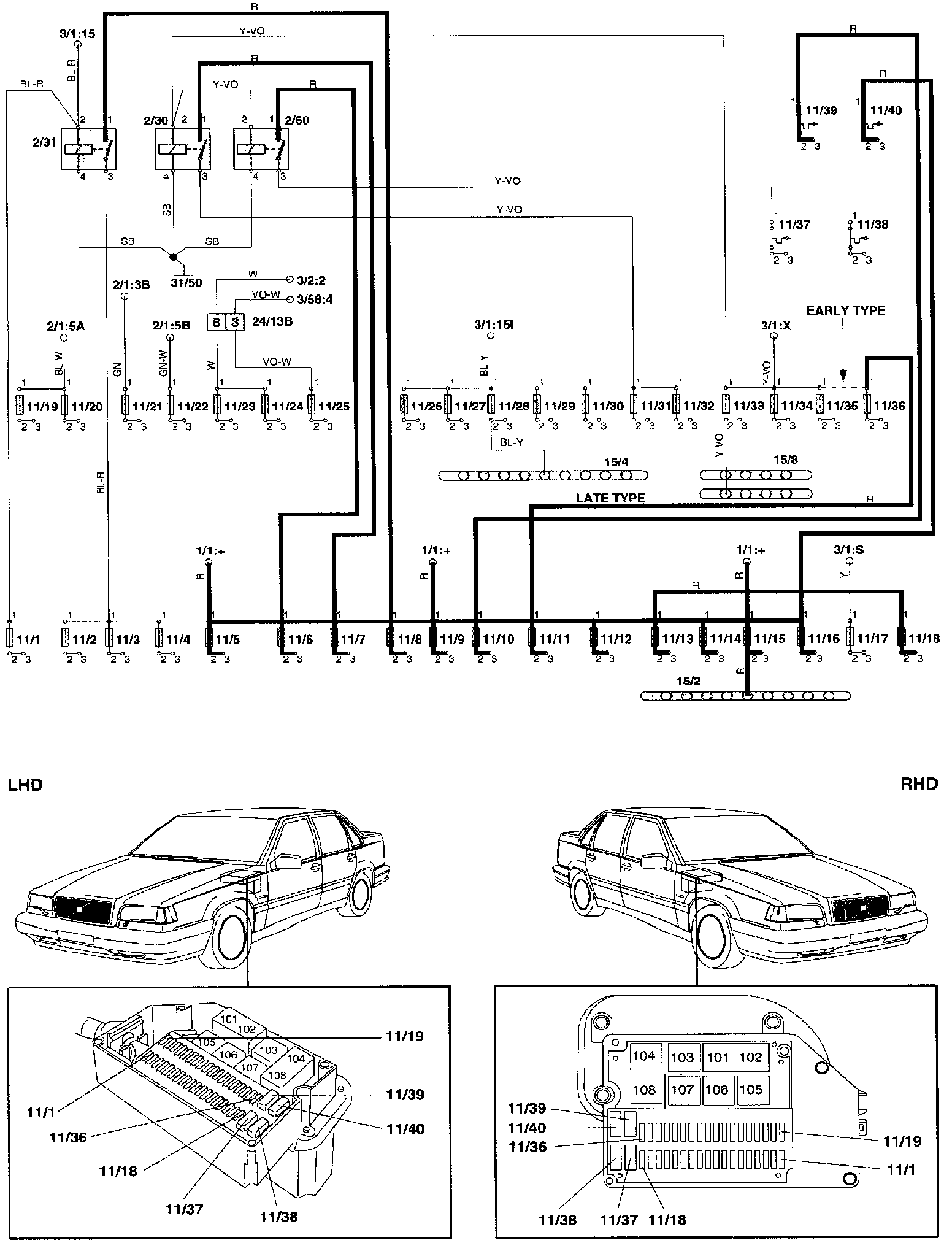

Relays Inside the Central Electrical Unit



Relays
101-102 Control module, cruise control (4/3)
103 Fuel pump relay (2/23)
104,108 Main headlight relay with bulb failure warning sensor (2/1)
105 Overload relay +X-supply (2/30)
106 Overload relay +15-supply (2/31)
107 Overload relay +X-supply (2/60)
201 Fog light relay (2/2)
202 Relay, deadlock setting (2/47)
or Relay, driver's door, 2-stage central locking (2/105)
203 Relay, windshield intermittent wiper (2/4)
204 Relay, tailgate intermittent wiper (2/16)
205-206 Relay, central locking I delayed inside lighting (2/7)
207 Relay, exhaust temp. sensor (2/15)
208 Relay, heated rear window / door mirrors (2/44)
210-211 Relay, anti-theft alarm (2/28)
212 Relay, seat belt reminder/key warning (2/5)
213 Front fog lights, bridge (34/13)
214 Relay, heated rear seat (2/43)

If the car is not equipped with an anti-theft alarm,
position 210 is bridged and 211 is unconnected.

Connection On Rails
15/2 30-rail
15/4 15I-rail
15/8 X-rail
31/50 Ground connection rail (power ground)
31/51 Ground connection rail (signal ground)

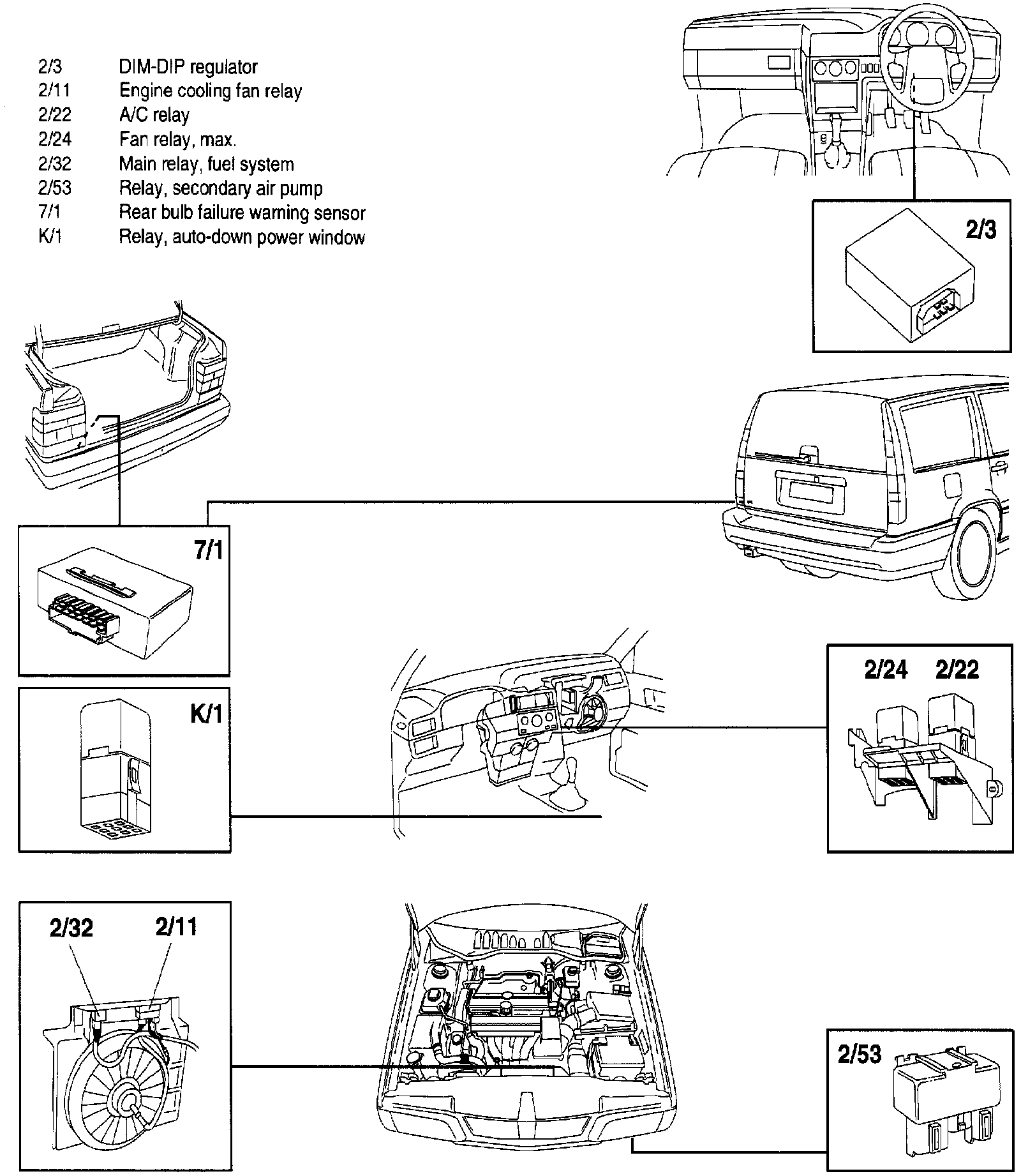

Relays Outside the Central Electrical Unit
