High Pressure Sensor / Switch: Locations

NOTE: In the 1995 High Side Cut-Off Switches switches 3, 4 and 5 are replaced by a linear sensor.

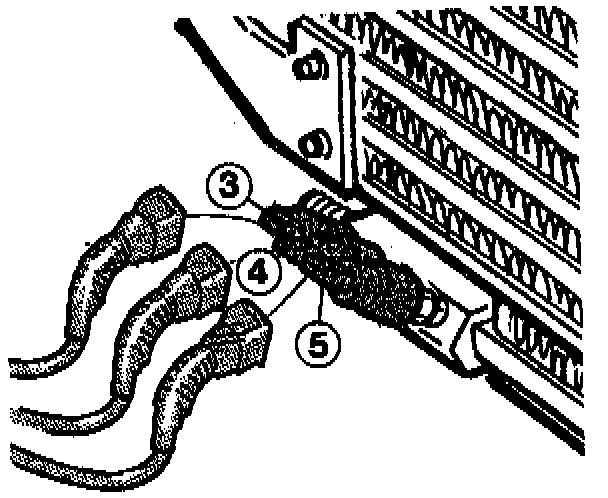

High Side Cut Off Switches. Are located in lower corner of the condenser:
^ Safety switch (3 - purple) (high-pressure cut-out).
^ High-pressure switch (4 - grey) (FC, high speed).
^ High-pressure switch (5 - brown) (FC, low speed).
