Lamp Out Sensor: Service and Repair

Bulb failure sensor replacement





Bulb failure lamp for tail/brake light
- Remove battery negative lead.

4-door:
- Remove cover from spare wheel well and fold back trunk carpet.
- Fit new unit.
- Test.

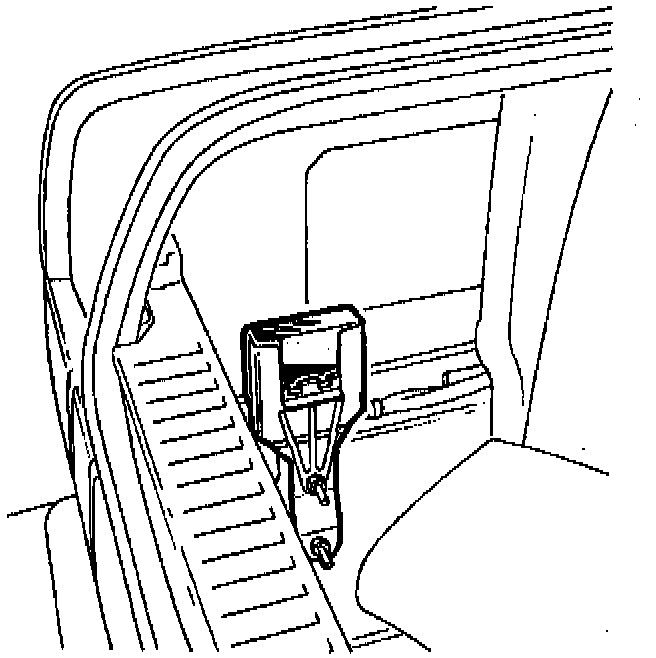

5-door:
- Remove side panel above left wheel arch.
- Remove sensor.
- Fit new unit.
- Test
- Replace in reverse order.
