Rubber Universal Joint Replacement

Removal
1. Remove the bolts.
2. Pry the shaft backwards slightly and tilt it down forward.

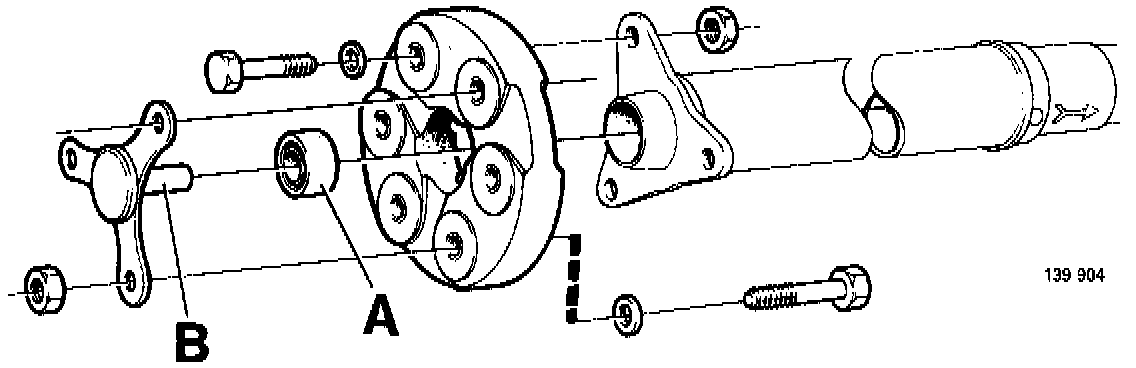

3. Remove the centering sleeve (A) and the rubber joint.

Installation
1. Grease the locating pin (B) with rubber bushing compound P/N 1 161153-0.
2. Fit the centering sleeve and the rubber joint.
3. Bolt to the transmission's coupling flange.
