Signal Too Low. Permanent Fault

Checking Power Cable
- Ignition OFF.
- Disconnect idle air control (IAC) valve.
- Ignition ON.
- Connect a voltmeter between idle air control valve connector terminal 2 and ground.
- The voltmeter should read battery voltage.

If reading is OK:
^ Proceed to: Checking Signal Wiring Resistance section below.

If reading is incorrect:
^ Check cable between main relay (2/32) terminal 3 and idle air control valve terminal 2 for an open-circuit.
^ Diagnostic trouble codes (DTCs) EFI-223 and EFI-245 will be stored if there is an open-circuit in the power cable.
^ Proceed to: Verification section below.





Checking Signal Wiring Resistance

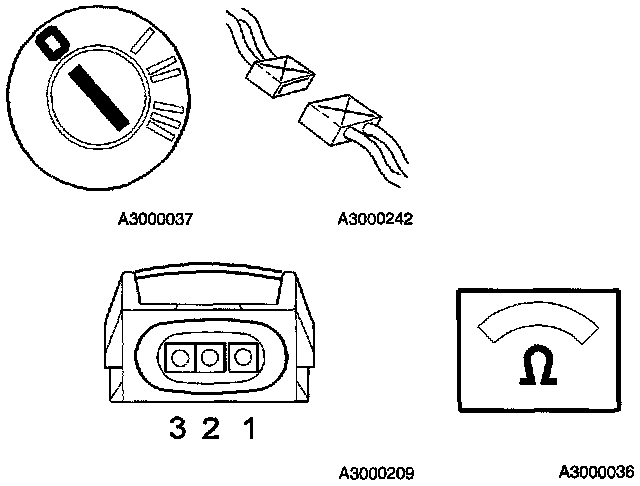

- Ignition OFF.
- Wait for approx. 150 seconds (cars with immobilizer 245 seconds).
- Idle air control valve disconnected.
- Connect an ohmmeter between idle air control valve connector terminals 1 and 3.
- The ohmmeter should read 20 - 40K ohms.

If reading is OK:
^ Proceed to: Checking Idle Air Control Valve section below.

Alternative 0 ohms:
^ Check cable between idle air control valve terminal 3 and engine control module (ECM) # A11 for a short-circuit to the cable between idle air control valve terminal 1 and engine control module # A25.
^ Proceed to: Verification section below.

Alternative 10 - 20K ohms:
^ Check cable between idle air control valve terminal 3 and engine control module # A11 for a short-circuit to ground.
^ Proceed to: Verification section below.





Checking Idle Air Control Valve
- Ignition OFF.
- Idle air control valve disconnected.
- Connect an ohmmeter between idle air control valve connector terminals 1 and 2.
- Read off value.
- Then connect an ohmmeter between idle air control valve connector terminals 2 and 3.
- Read OFF value.
- The ohmmeter should read 9 - 14 ohms at +20°C (+68°F) in both cases.

If reading is OK:
^ The cause of the diagnostic trouble code has been loose connections in the idle air control valve connector. Check connector for contact resistance and oxidation and remedy.
^ Proceed to: Verification section below.

If reading is incorrect:
^ Try a new idle air control valve.
^ Proceed to: Verification section below.





Verification
After carrying out the repair, check that the fault has been remedied as follows:

- Ignition ON.
- Activate idle air control valve.
- A "clicking sound" can be heard from the idle air control valve when it is activated.
- Is the idle air control valve working?

Yes:
^ Fault corrected.

No:
^ Proceed to: Fault-tracing Information section below.

Fault-tracing Information
The verification result shows that the fault persists.

- Do you want to exit fault-tracing?

Yes:
^ Fault not corrected.

No:
^ Proceed to: Checking Power Cable section above.
