Foam Rubber on Wiring/Squeaking From Vinyl In Rear Seat

Install:

- 7 pieces of textile tape, P/N 3537385-1, to secure wiring.

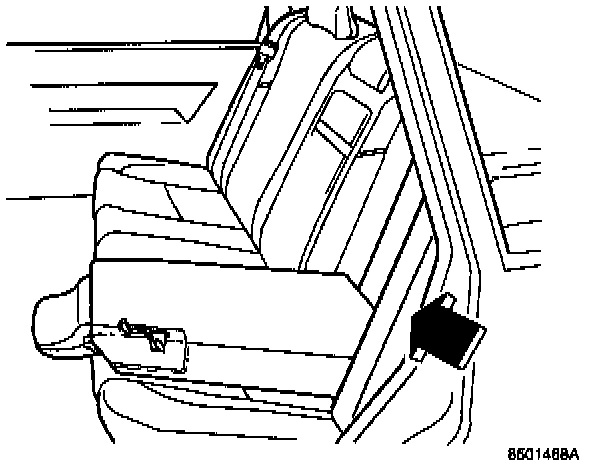

Apply anti-squeak varnish, P/N 1161412-0, on the vinyl at the following sites:





- between rear seat back rests.





- between side cushion and bodywork.

Squeaking from vinyl in cars with child seat





Apply anti-squeak varnish, P/N 1161412-0, on the child seat strap.
