Step M4
Checking the ground lead to the alarm relay base
- Ignition off.
- Replace fuse 14 in fusebox.
- Disconnect alarm control module (item C/F).

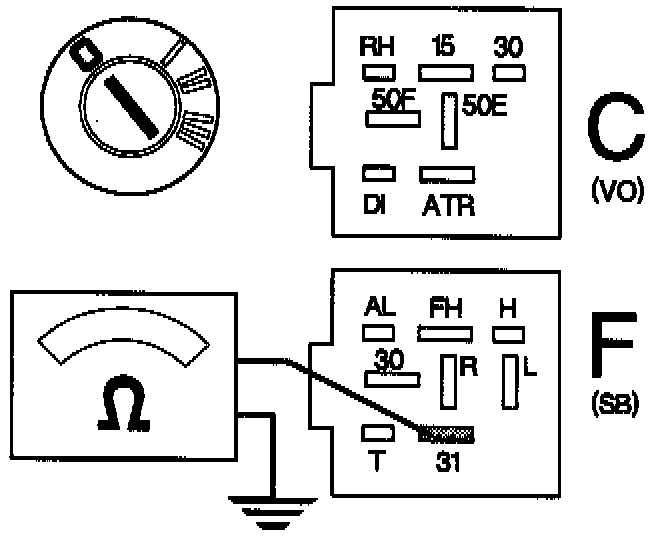

- Connect an ohmmeter between ground and the alarm relay base item 31. The ohmmeter should read approx. 0 ohms.
If the reading is correct:
- Continue with step M5. Step M5
If the reading deviates:
There is a break in the ground lead between the alarm relay base item 31 and the grounding point A-post 31/10.
- Rectify the fault or renew the lead.
Replace the alarm control module.
