Installing Center Console

10

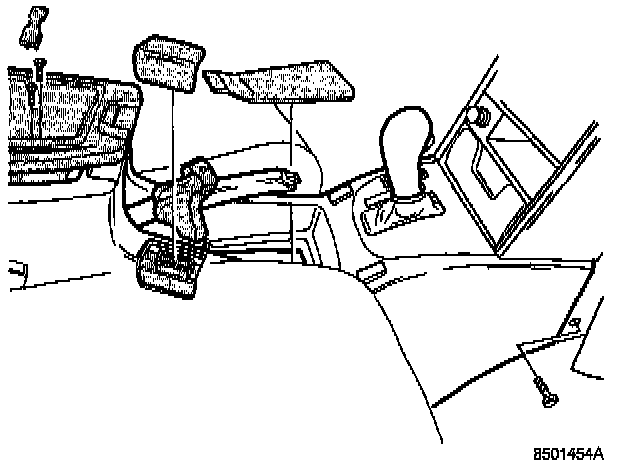

Install center console and center console locker

Connect any switches. Install gear selector top panel onto the center console.





Slide the center console forward. Install screws in the front edge. Press soundproofing panels into place.

Connect rear ashtray lighting and data link connector (DLC).

Install center console locker. Install and tighten center console locker and cover screws. Press cover.

Press cover under parking brake lever into place. Install boot on lever.

Press data link connector (DLC) and cover into place. Also press the cover at the bottom of the center console locker into place.
