Trailer Lighting Module

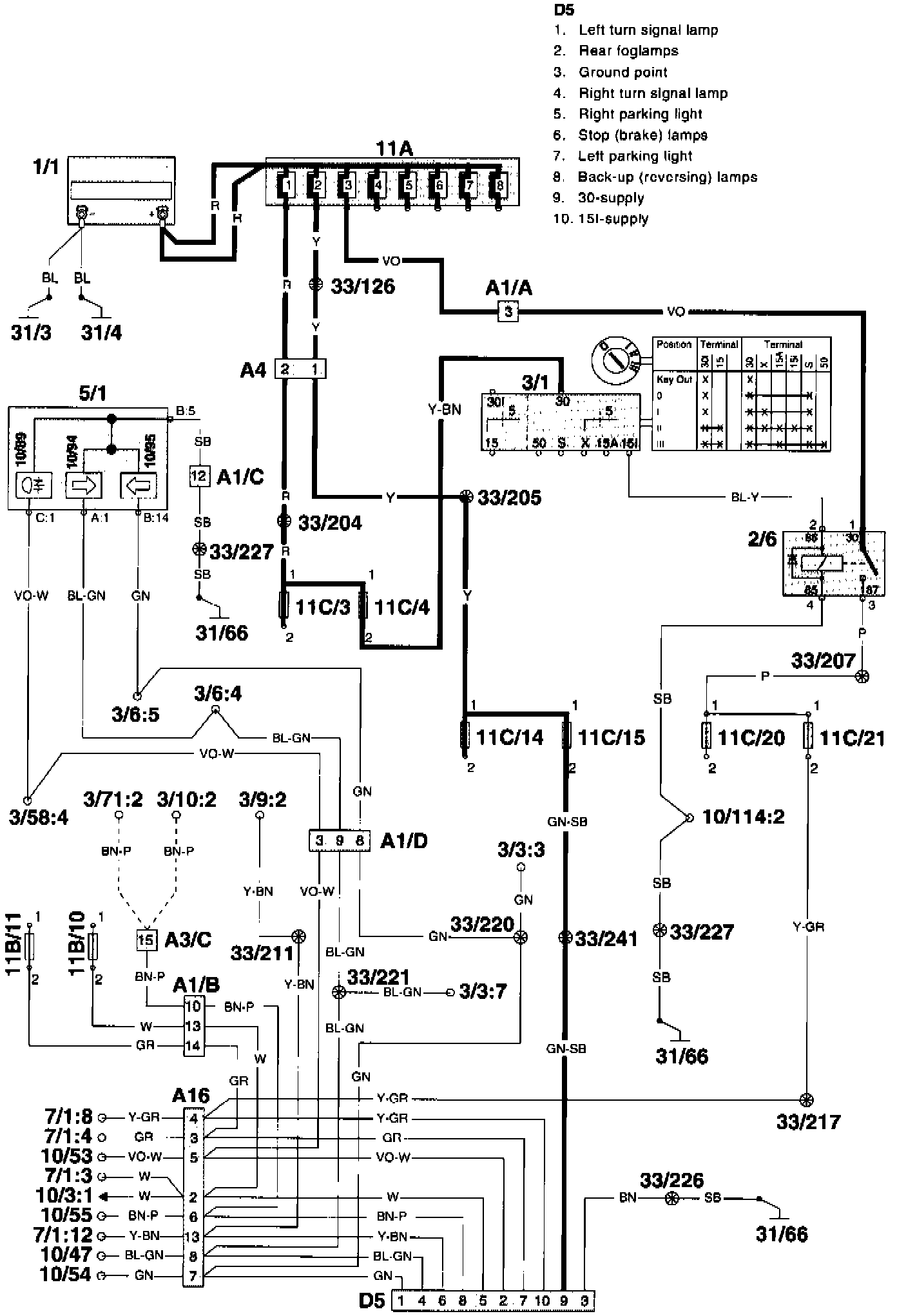

Wiring Diagram

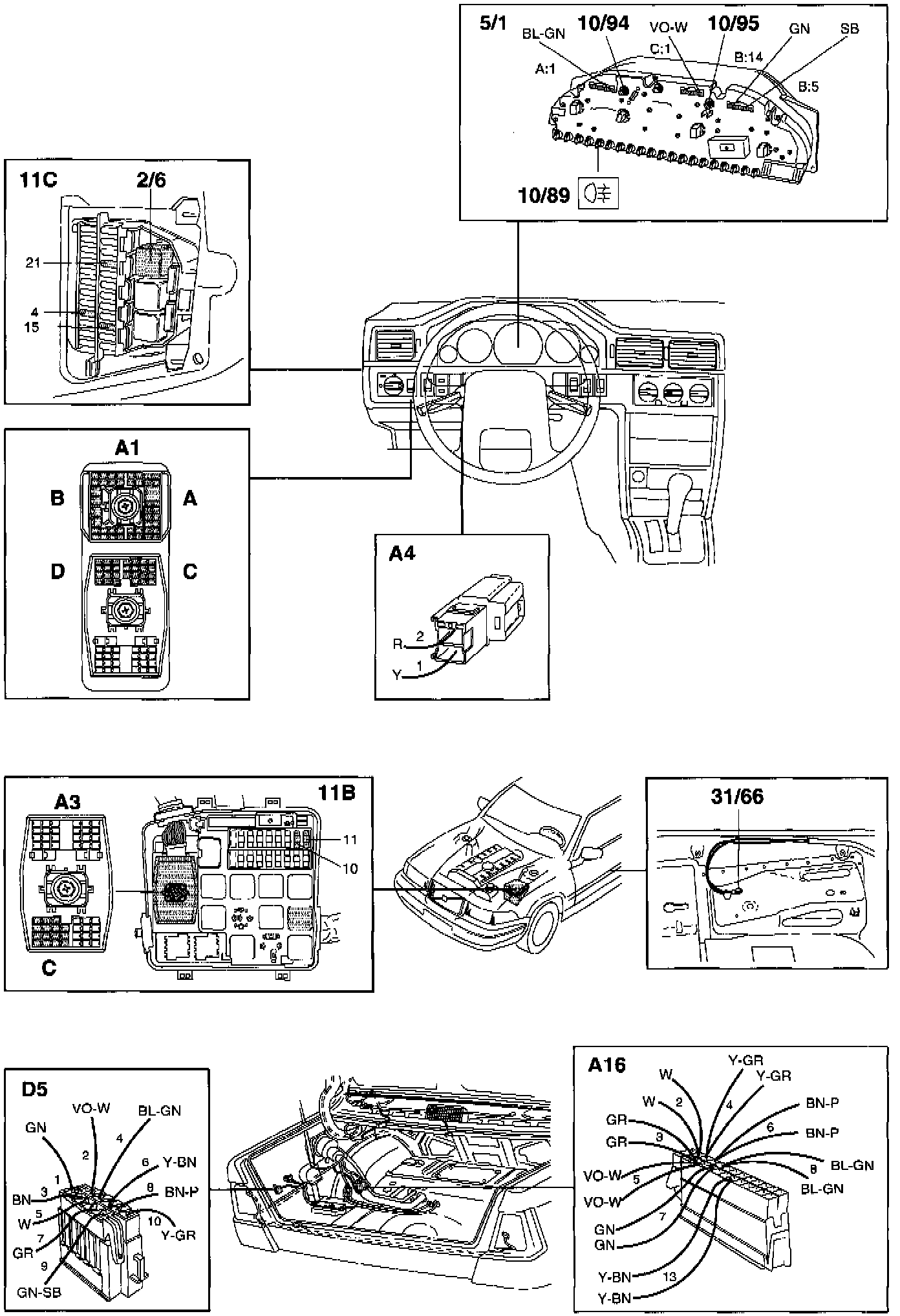

Component Location

Component I.D. List
A1 Multi-connector under dashboard at left A-post
A3 Multi-connector in relay/fusebox in engine compartment
A4 2-pin connector engine compartment harness - passenger compartment cable harness
A16 Connector 24-pin passenger compartment harness -cargo compartment harness
D5 Connector 10-pin to switch
2/6 Overload relay +15I
5/1 Combined instrument panel
10/89 Indicator lamp, rear fog lights
10/94 Indicator lamp, right turn signal lamp
10/95 Indicator lamp left turn signal lamp
11B/1-18 Fuses in relay/fusebox in engine compartment
11C/1-24 Fuses in fusebox in passenger compartment
31/66 Ground point left seat support
