Idle Air Control Valve
The idle air control valve has a linear function.

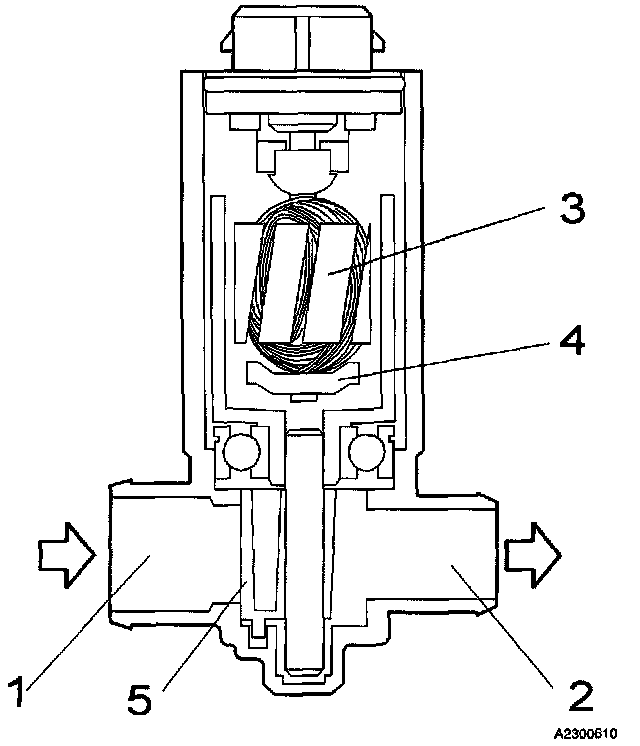

The valve consists of the following components:
^ Inlet (1)
^ Outlet (2)
^ Rotor (3)
^ Permanent magnet (4)
^ Valve (5).
The idle air control valve rotor (3) is equipped with an opening and a closing coil, and with a permanent magnet (4). The engine control module transmits pulsed ground signals to both coils. Depending on the character of these control signals the rotor drives a valve (5) which controls the air low to outlet (2).
