Replacing Spark Plugs

Spark Plugs

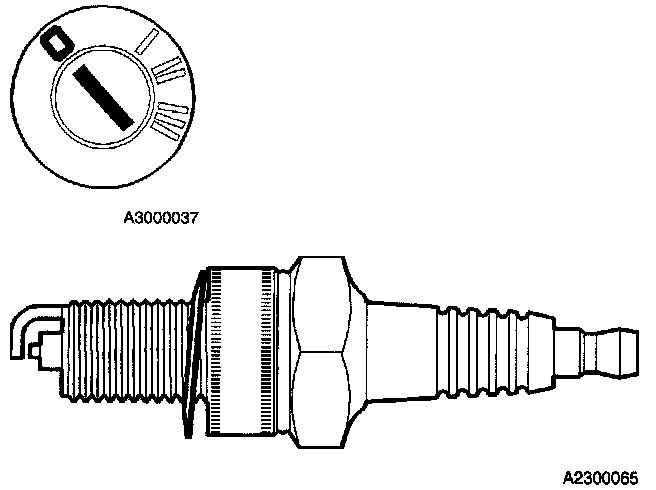

- Ignition OFF.
- Replace all spark plugs.

NOTE: It is vital that the correct spark plugs are used, see parts catalogue for P/N. Check the spark gap of the new spark plugs before fining them. Spark gap should be 0.7 - 0.8 mm (0.028 - 0.032 in).

- Connect all ignition coils.
- Continue with checking fuel and residual pressure.
- Operation done.
