Carphone Module/Audio Module

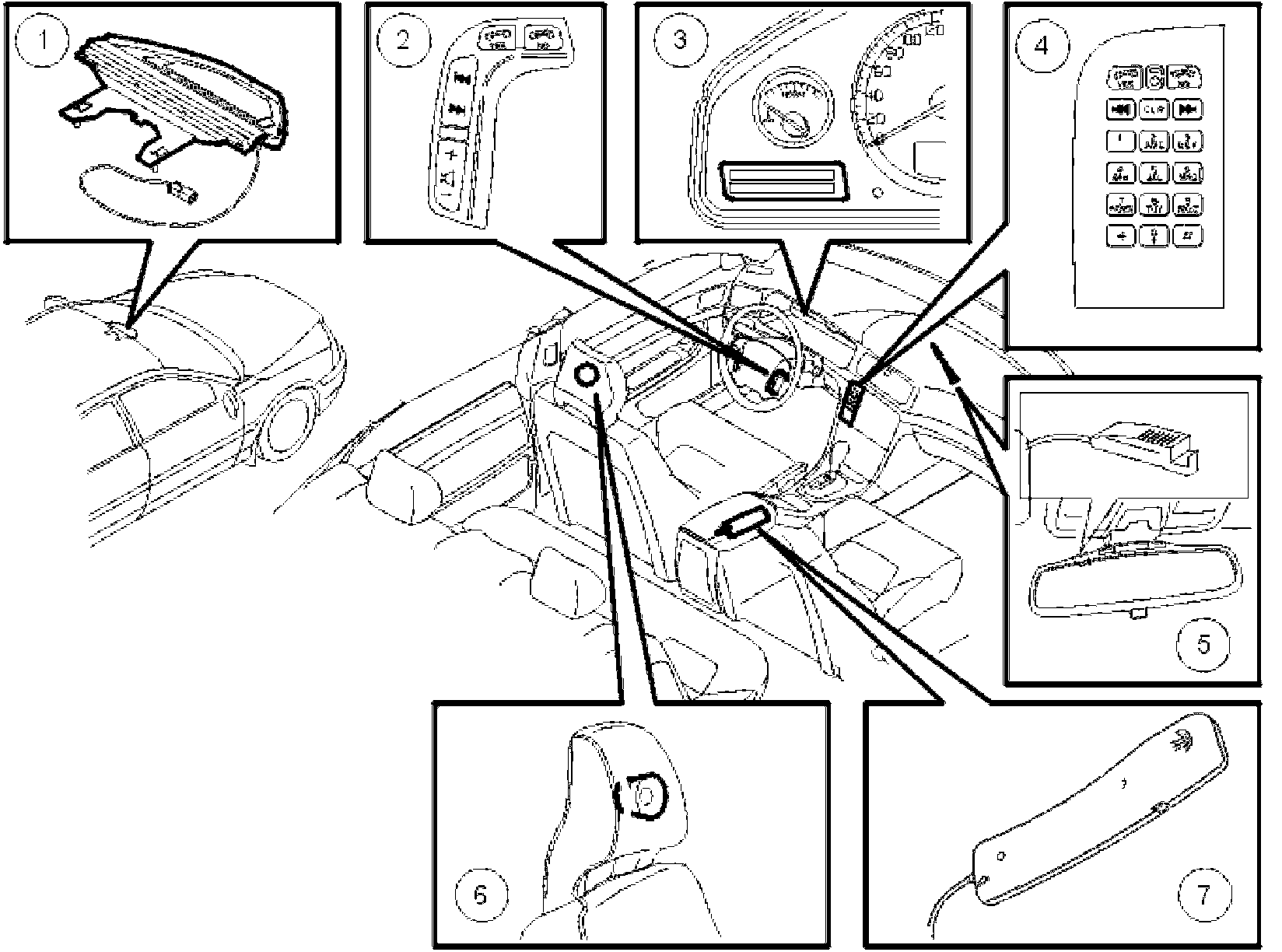

Carphone Module

Overview







1. Telephone antenna mounted in front windshield
2. Telephone keypad in the steering wheel
3. Combined instrument panel display
4. Keypad beside audio system head unit
5. Handsfree microphone mounted in rear-view mirror
6. Handsfree loudspeaker mounted in drivers head rest
7. The handset in the front seat armrest.

Audio Module (AUM)







1. Radio antenna. Integrated in the rear windshield
2. Antenna amplifier FM/AM, located in the D-post
3. Loudspeakers, positioned in the parcel shelf
4. Keypad in the steering wheel for audio and telephone
5. Center loudspeaker with display for cars with the Road Traffic Information module (RTI)
6. Center loudspeaker for cars without a Road Traffic Information Module (RTI)
7. Audio module (AUM) - Sound unit audio
8. Door-mounted loudspeakers front (treble)
9. Door-mounted loudspeakers front (bass/mid-range)
10. External amplifier, positioned under the right-hand front seat
11. Rear door-mounted loudspeakers
12. Antenna amplifier for the bumper antenna
13. FM antenna integrated in the bumper
14. CD changer audio.
