Signal Description

Signal description. Transmission control module (TCM)

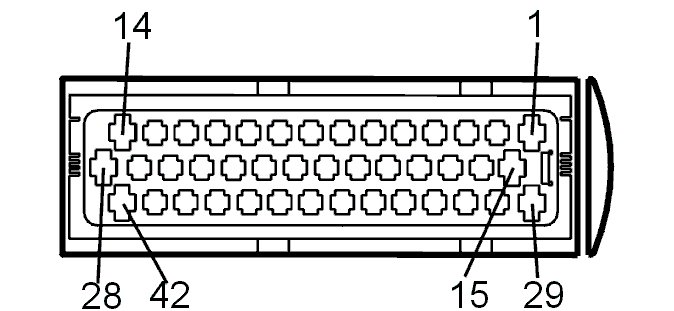

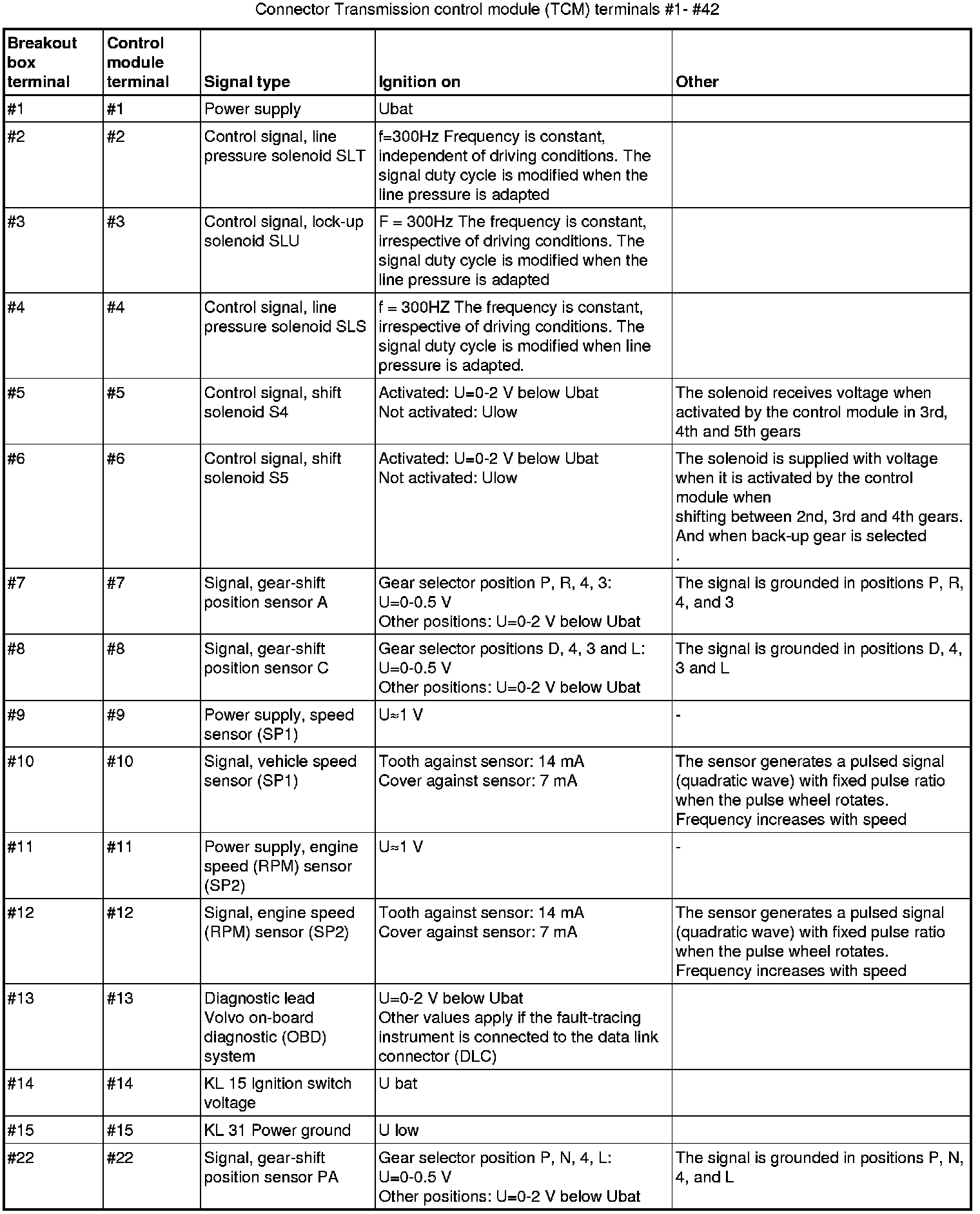

Connectors, Transmission control module (TCM)

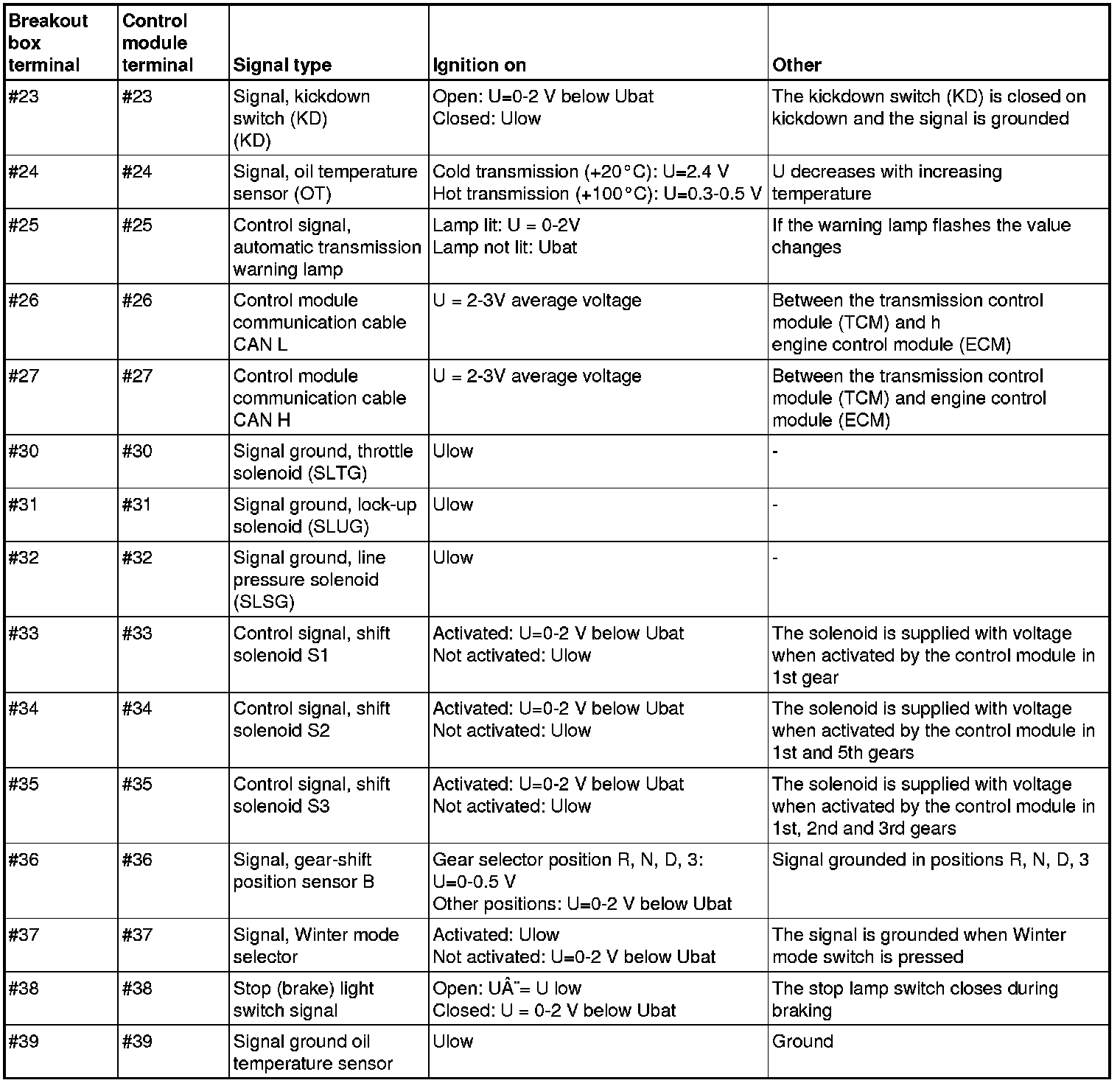

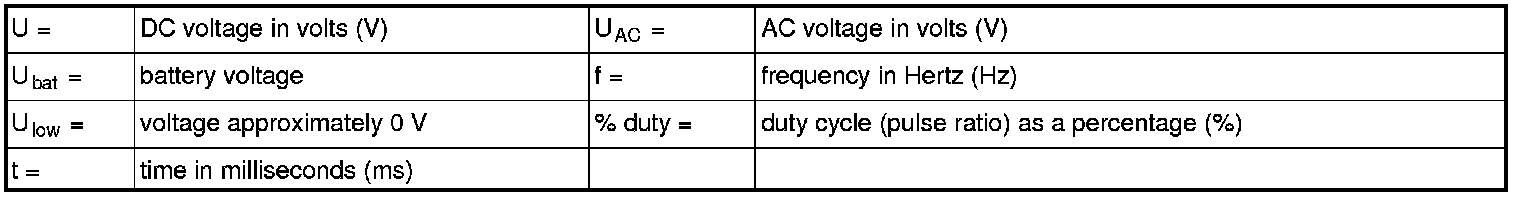

All values listed below are between the terminal in column 1 and terminal #15 (power ground), unless otherwise indicated in brackets.

Note! Connect the breakout box and check the ground terminals before taking readings.
