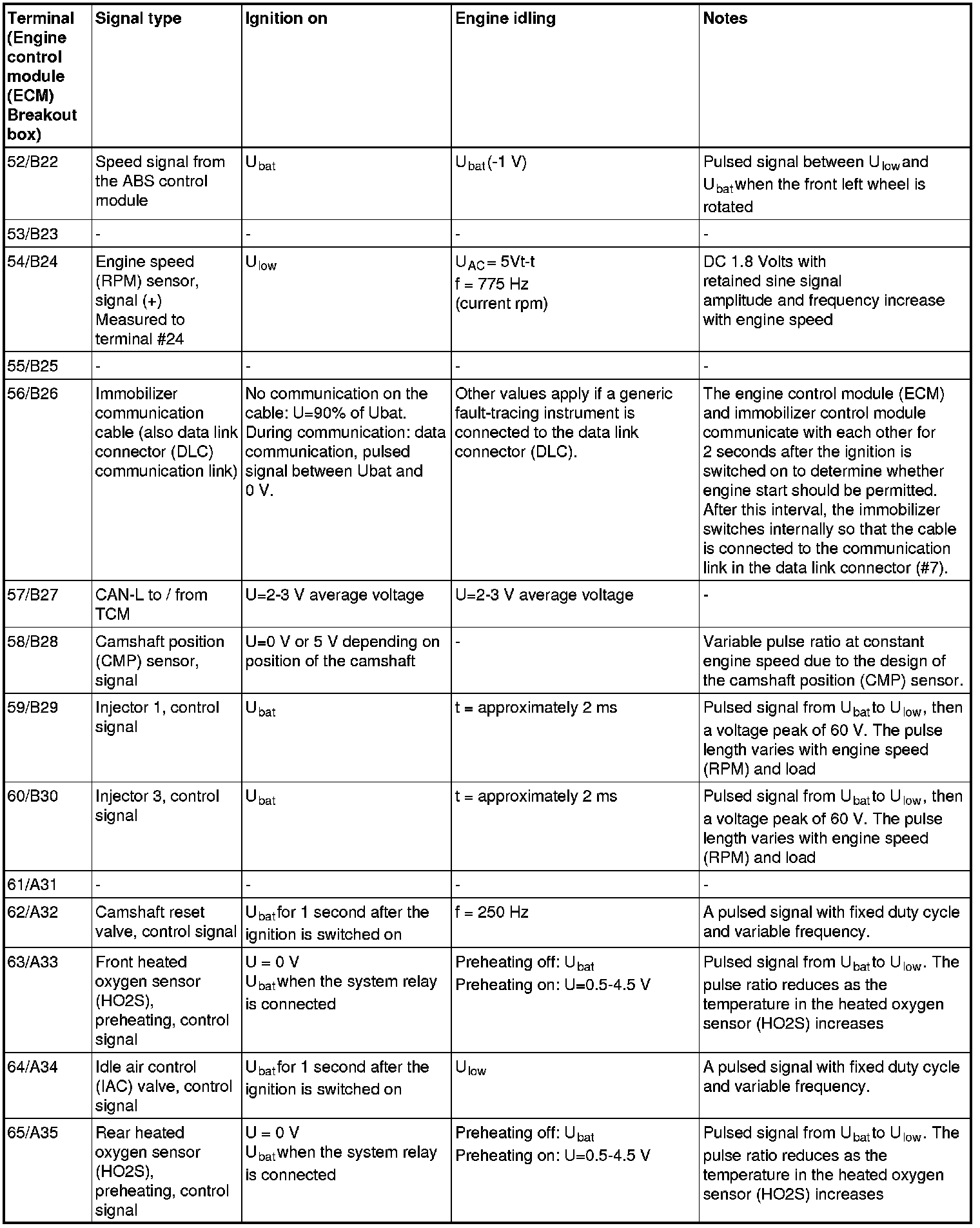

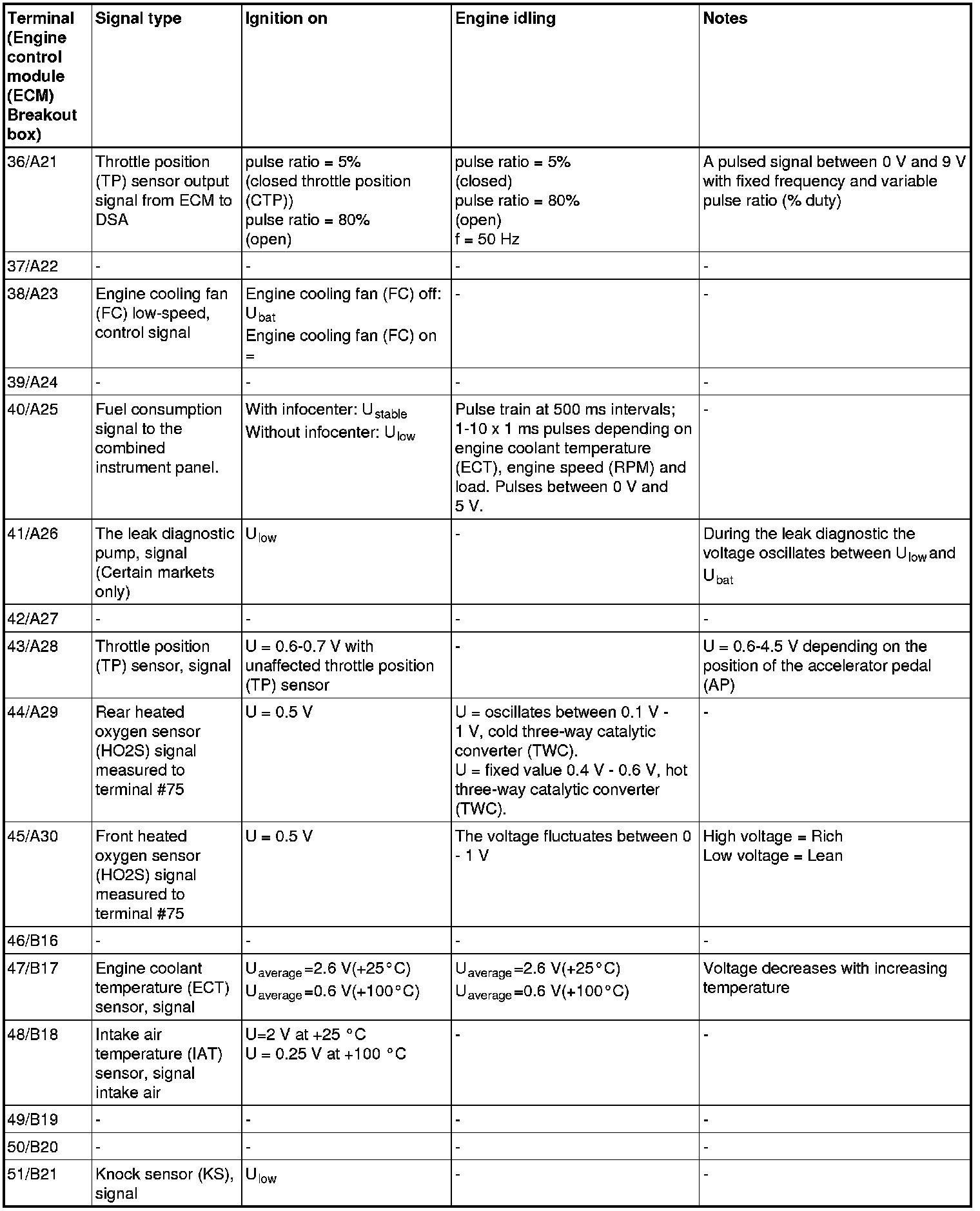

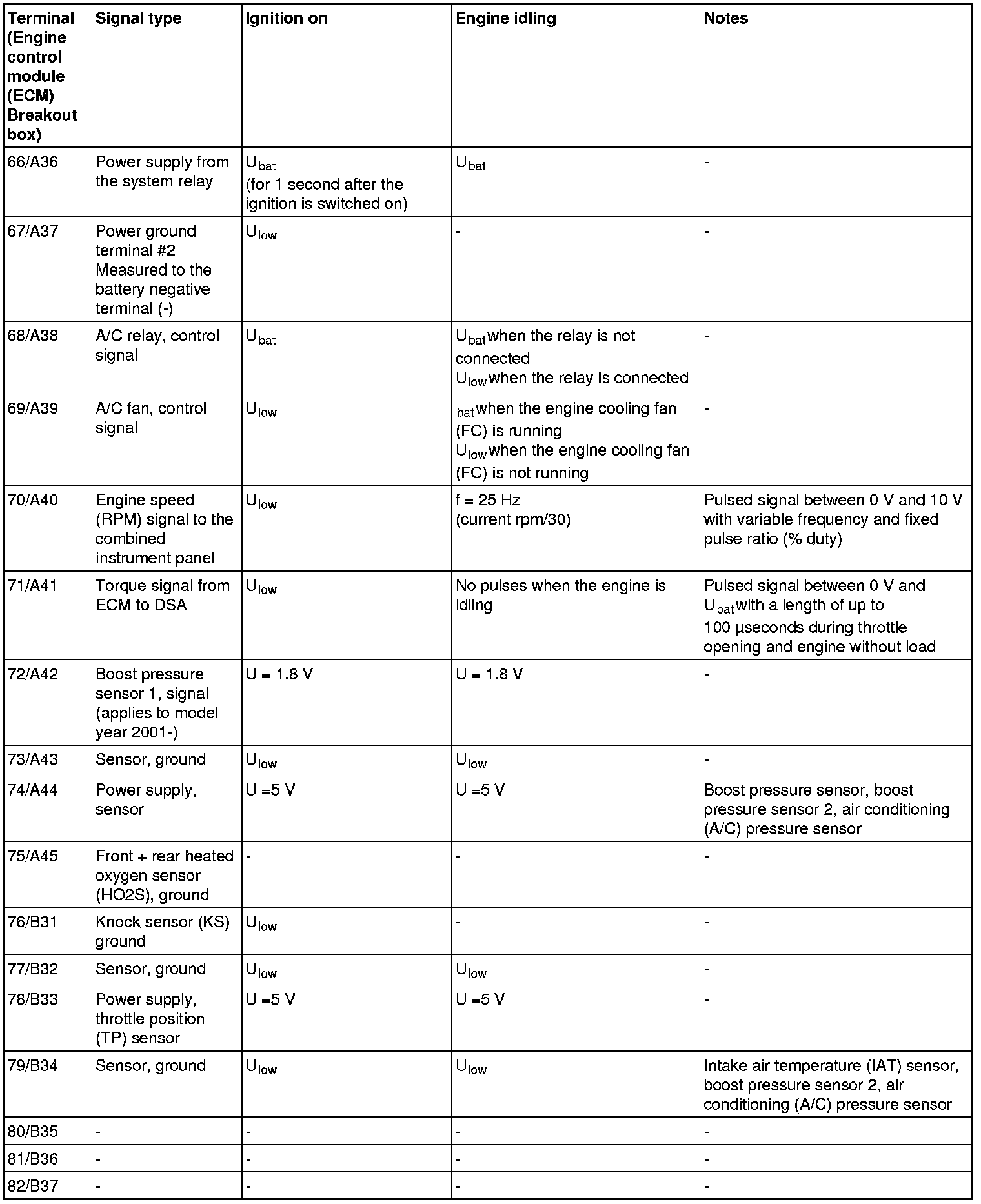

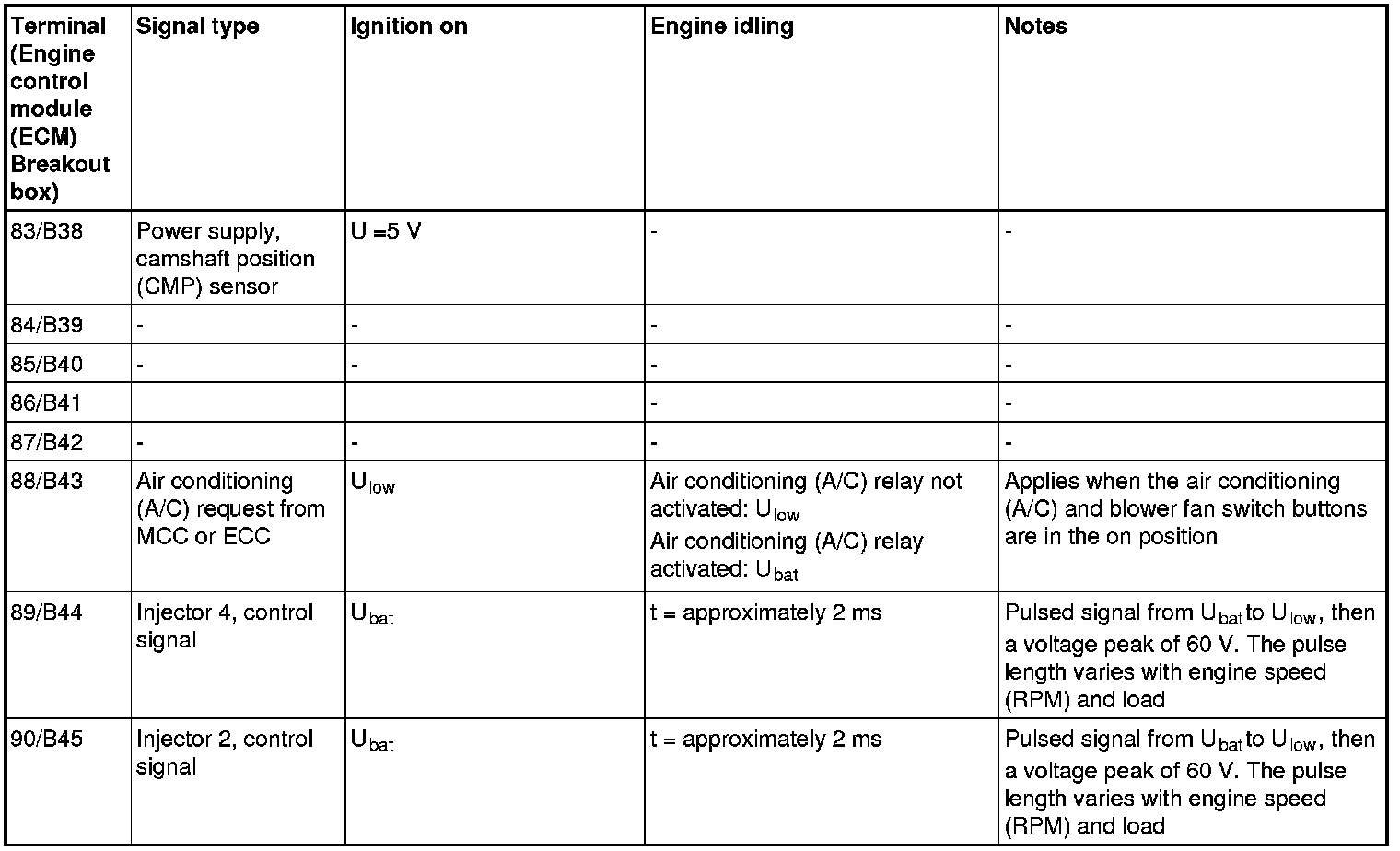

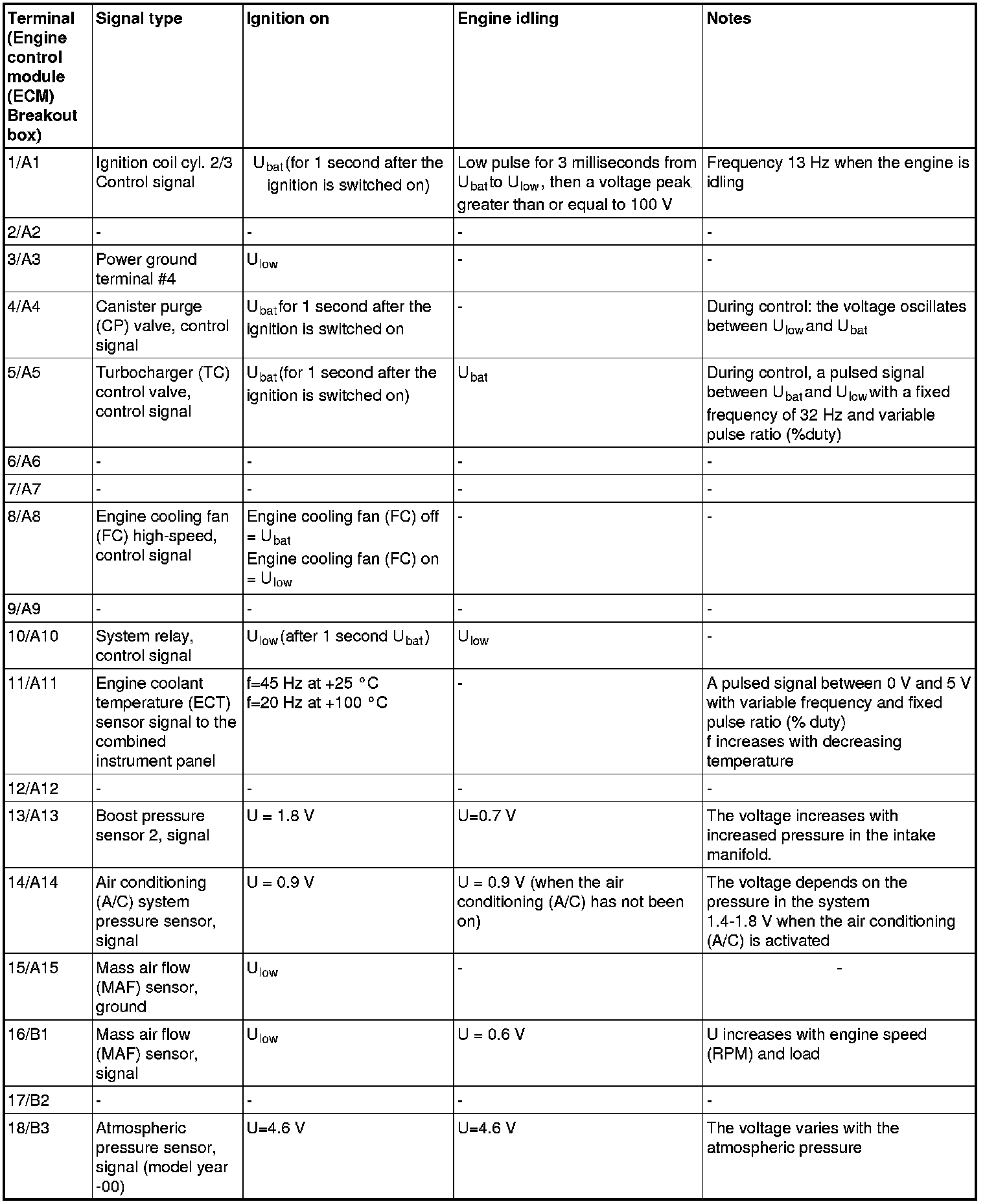

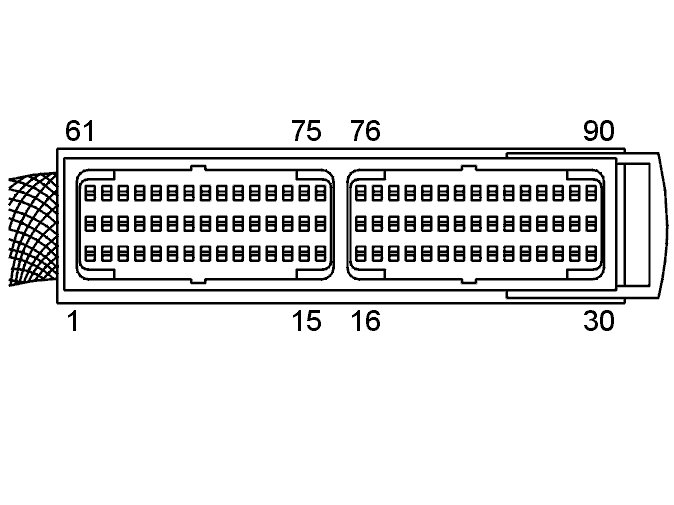

Signal Specification

Signal specification

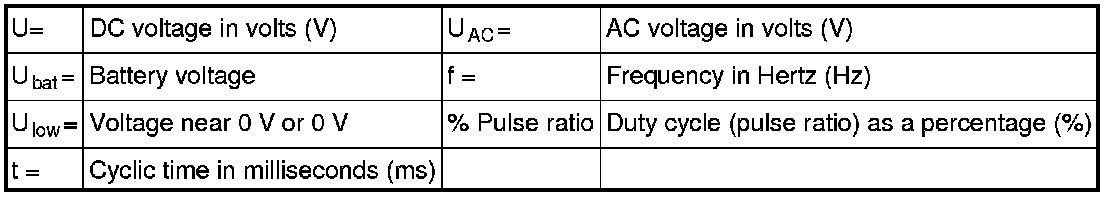

Hint: All the values given below are measured between the relevant terminal in column 1 and terminal #3, unless otherwise indicated in brackets.
The values specified in the table apply with the engine unloaded and at normal operating temperature.

Note! It is important that the breakout box is connected according to Connecting the breakout box. EMS 2000 Connecting The Breakout Box. EMS 2000 , before the readings are taken.
