Checking the Head Restraint Display (Both Screens). Rear Seat Entertainment, Generation 3.1/3.2
Checking the head restraint display (both screens)
Fault-tracing information
If neither display screen functions and the fault is not related to a certain function, for example when the auxiliary jack (AUX) or the TV are in use, the fault may be due to:
- Contact resistance in the terminals and connectors
- Disconnected connector to the display screen
- Open-circuit in the signal cable
- Power supply
- Defective Rear Seat Entertainment Module (RSE).
Continue - Checking the head restraint display (both screens)
-------------------------------------------------
Checking the head restraint display (both screens)
Checking the settings
Check that the contrast is set correctly via the DISPLAY menu.
Check that the display screen has not been switched off via the remote control menu system SCREEN OFF.
Checking the power supply control module
Check that the fuses for the control module are intact and that power is supplied to the fusebox and ground terminal for the control module.

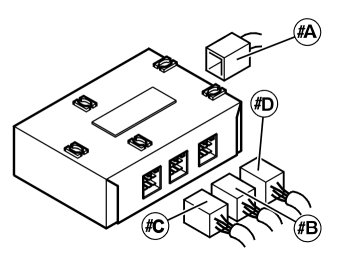

Hint: The control module is supplied with power via terminals #B1, #B4 and #B6. The control module is grounded via terminal #B12.
Checking the connector to the control module (neither display screens function)
Check that the connector between the control module and both display screens (terminal A) is connected. If the control module does not transmit picture signals from the DVD, TV or auxiliary jack (AUX), there is probably a fault in the control module.
Checking the lighting for the control module
If the surround lighting for the display screen does not function. Carry out the above checks on another cable. Check the power supply to the lighting. Check the cable between the control module terminal #A10/#A20 and the display screen terminal #10. In addition check the lighting ground supply, the cable between the control module terminal #A9/ #A19 and display screen terminal #9. (One for each display screen).
Remedy as necessary.
Other information:
- To access or replace the Rear Seat Entertainment Module (RSE), see Rear seat entertainment module (RSE), replacing Rear Seat Entertainment Module (RSE), Replacing
- For further information about signals and other values, see Signal specification, rear seat entertainment module (RSE) Signal Specification, Rear Seat Entertainment Module (RSE), Generation 3.1/3.2 and Signal specification, control module for rear audio separation (RAS), Premier Signal Specification, Rear Sound Separation Electronic Module (RAS). Rear Seat Entertainment, Generation 3.1/3.2
- To fault-trace wiring and terminals see Checking wiring and terminals Checking Wiring And Terminals
- For further information about the fuses and relays, see the Wiring Diagram.
Continue - Verification
-------------------------------------------------
Verification
Checking the head restraint display (both screens)
Checking the head restraint display (both screens)
Check that both the display screens function.
Do the display screens in the head restraint function?
Yes - Verification complete
No - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit Fault-Tracing
No - Attempt New Test
------------------------
Attempt New Test - Fault-tracing information
-------------------------------------------------
