RTI Market Adjustment

RTI market adjustment

The RTI system must be adapted if the car is transported from the EU to the US markets. If the system is not adapted, incorrect data will be displayed on the RTI screen during use. This is because the markets use different systems to transmit traffic information.

Adjustment




- Activate the RTI system

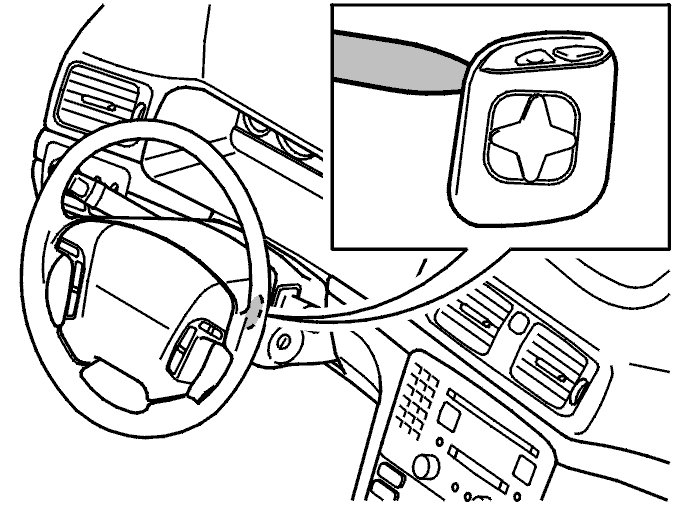

- Press Back-Enter-Back on the RTI buttons when the screen is deploying and the start-up screen is displayed. A special menu will be displayed on the screen.

Hint: A number of attempts may be required before the special menu is activated. Switch off and restart the system until the menu appears.

- Select 3. Vehicle Information from the menu
- Select 3.5 Hardware Type
- Then select the relevant market alternative, EU, JP or US
- Press the Back button twice
- Select 6 End.
The system has now been adapted for the correct market.
