Head Restraint Front Seat






Head restraint front seat

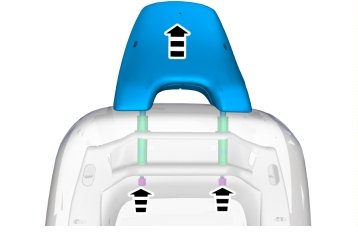

Press the two catches at the bottom of the protective pad downwards.
Press through the upholstery.
Lift the head restraint upwards while the catches are pressed in.
Press down head restraint until the catches lock.

Note! Check by lifting the head restraint. It should not be possible to move it upwards.
