Seat Temperature Relay: Service and Repair

Relay heater pad rear seat, replacing

Preparatory work
Remove the rear seat side cushion. See Side cushion .

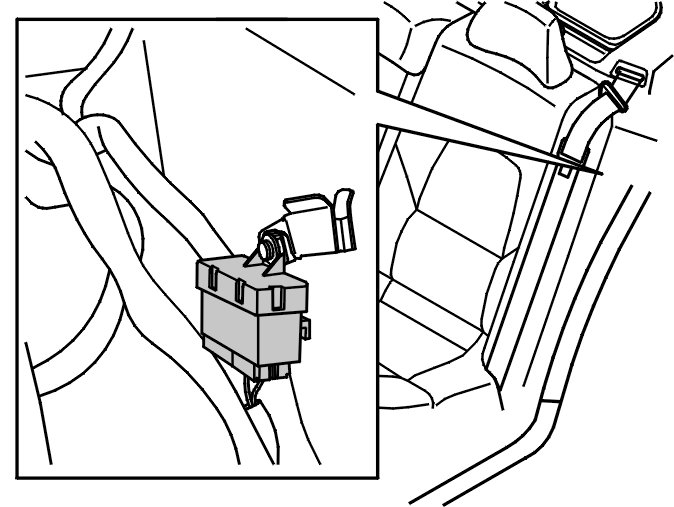

Removing the relay




Disconnect the relay connectors.
Remove the screw and the relay.

Installing the relay




Install the relay and the screw.
Connect the relay connectors.

Finishing
Install the rear seat side cushion. See Side cushion .
