Backrest Padding

Backrest padding

Replacing backrest padding
Replace the backrest upholstery according to Upholstery back rest, replacing Upholstery Back Rest, Replacing.
Fold out and release the protective pad and turn the backrest adjustment and lumbar adjustment knobs.
Press out the clip in the rear of the protective pad.

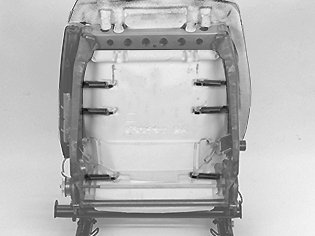

Remove the six springs on the reverse of the foam padding.
Remove the wiring for the backrest and seat heater.
Replace padding
Install a new seat heater element according to Heater pad, replacing Front Seat.

Install:
In reverse order
