Fuel Filter: Service and Repair

Replacing the fuel filter

Removal

Draining the fuel system




- Depressurize the fuel system according to Fuel system pressure release Fuel System Pressure Release.

Removing the fuel filter

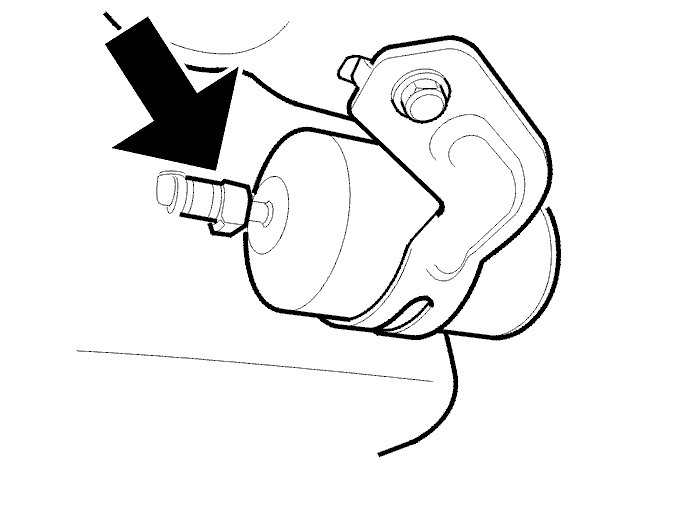

- Remove the screw securing the clamp around the filter
- Disconnect the quick-release connectors from the fuel filter
- Replace the filter.

Installation

Installing the fuel filter
In reverse order.
Tighten the screw. Tighten to 25 Nm.
