System Specifications

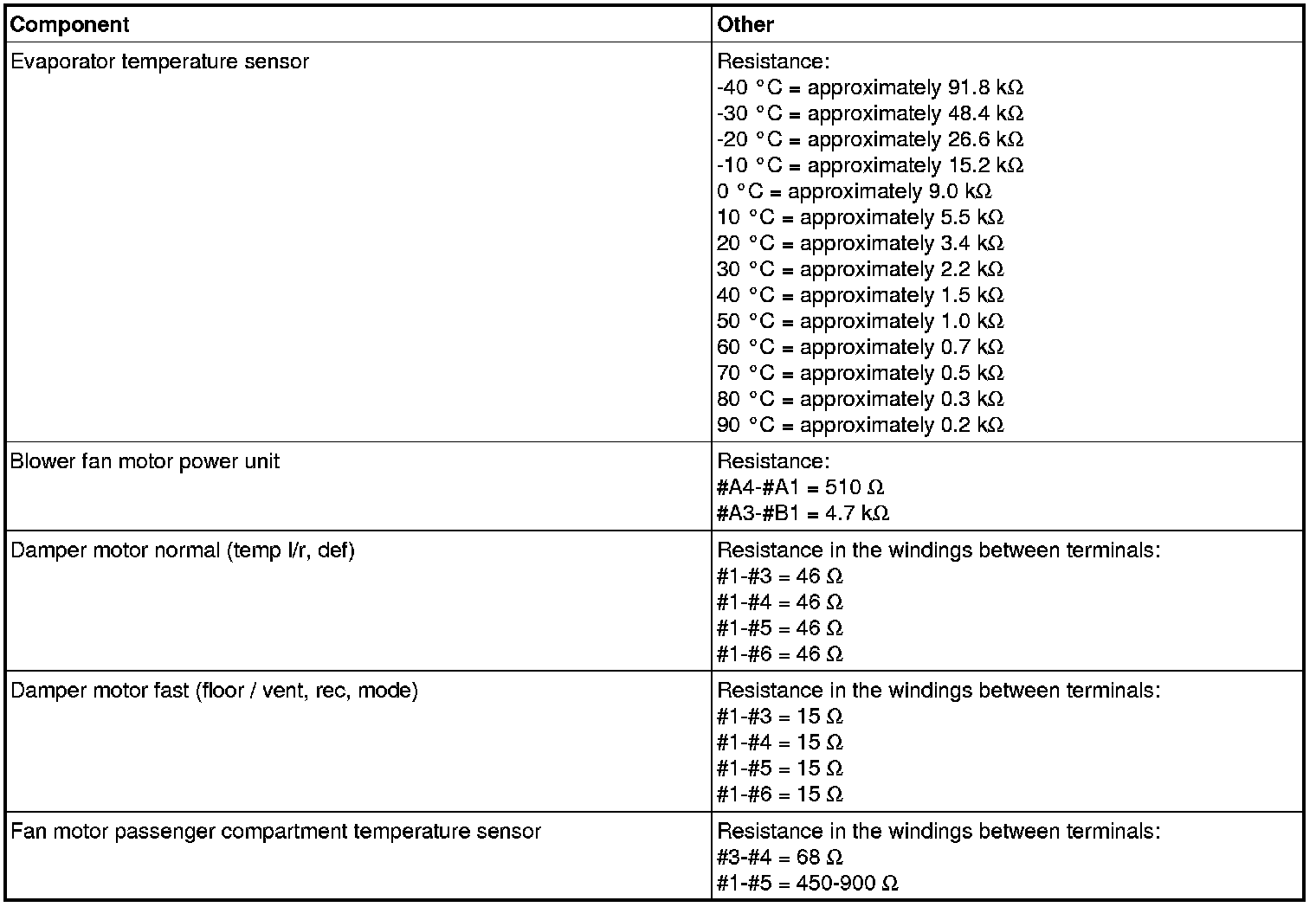

Component resistance values
The resistance values assume a temperature of +20°C unless otherwise stated.

Note! For the damper motors, a diode must be connected in series with each winding. This can have a great effect on the measurement value when resistance testing if measured using a tool other than VIDA. The resistance given will be significantly higher than the value given in the table below.
