Steering Angle Sensor: Service and Repair

Steering wheel angle sensor module (SAS), replacing

Operation number: 64

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Soundproofing panel
Remove the driver's side soundproofing panel.

Control module

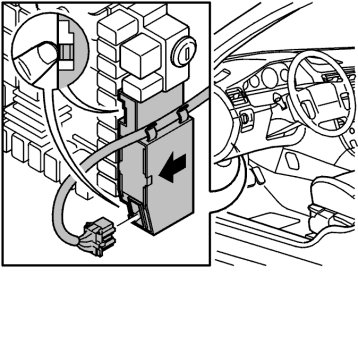

Remove the control module by pressing the 2 catches using a finger and pulling the control module backwards (see the arrow).
Remove the connector and the cable.

Installation

The control module




Install the cable in the holder for the control module. Press the connector into place.
Reinstall the control module. Press the module into place until there is an audible click.
To install, reverse the removal procedure

Ordering software
Order software according to the table below.
