Diagnostic Trouble Code (DTC) Information

SRS-0025 Diagnostic trouble code information

Condition




If the circuit resistance is too low for more than 10 seconds, diagnostic trouble code SRS-0025 is displayed.

Substitute value
- Nothing.

Possible source
- Short circuit in igniter wire or connectors between the air bag and the supplemental restraint system (SRS) control unit

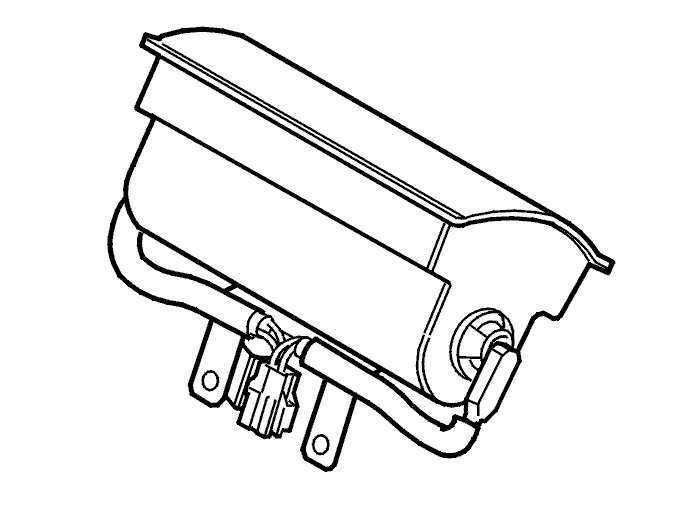

- Short circuit in air bag (resistance in igniter too low).

Fault symptom[s]
- SRS warning lamp on.
