Specifications, Mechanical

Crank Mechanism







Crankshaft

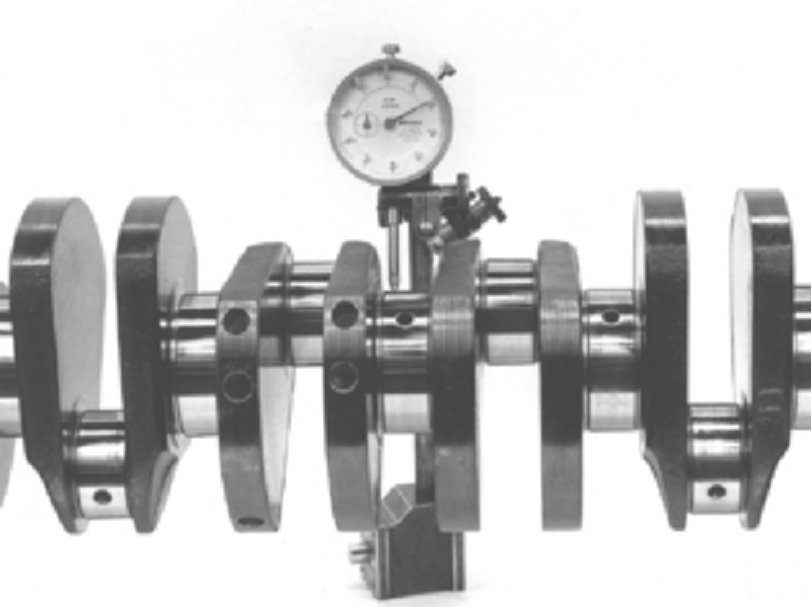

Main bearing journal radial runout maximum 0.040 mm
Axial play
(Measured in the engine with the intermediate section tightened) 0.08 - 0.19 mm
Main bearing journal radial runout 0.020-0.043 mm

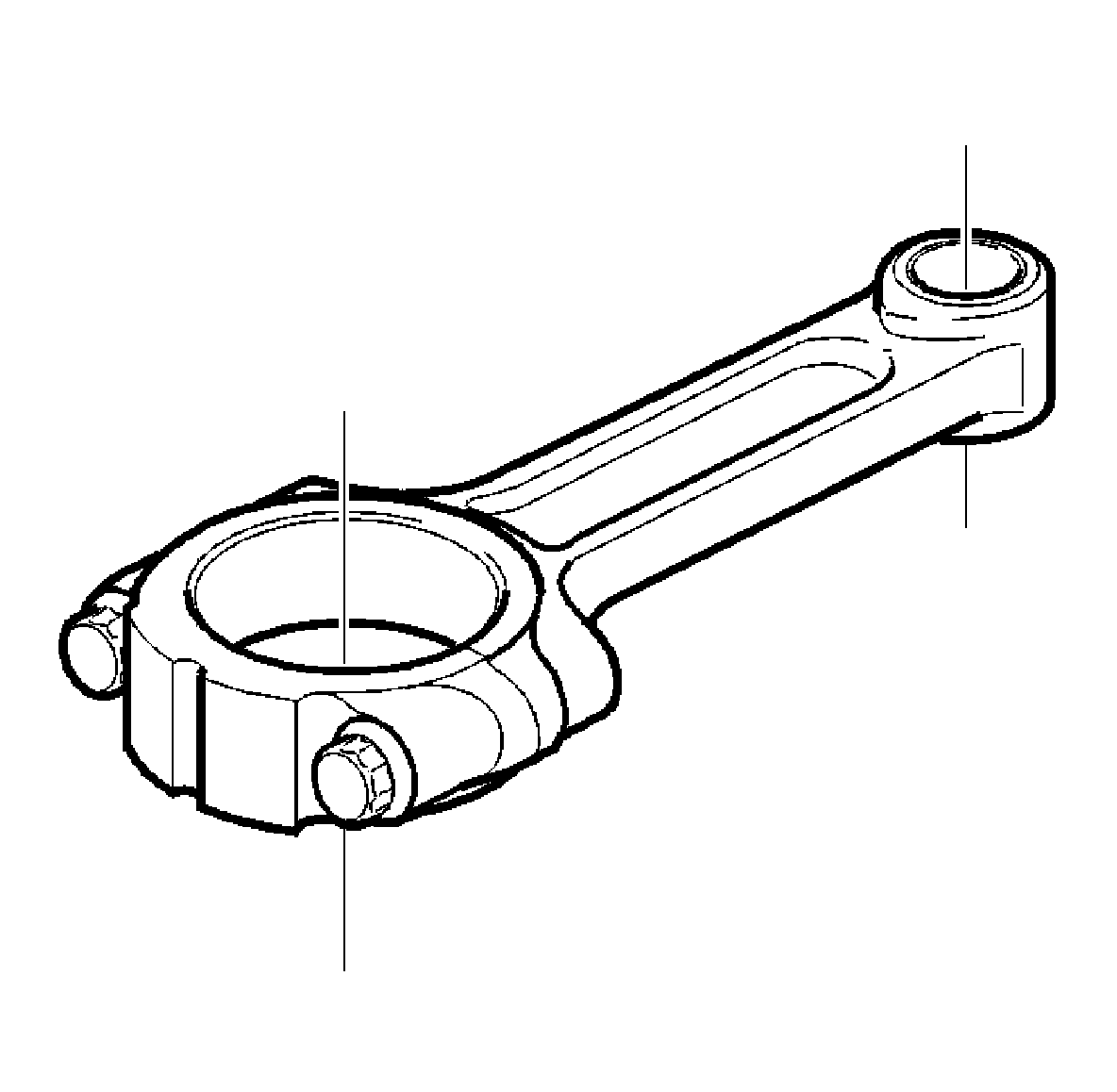

Big End Journals
Diameter, standard (1) 50.000 +0/-0.016

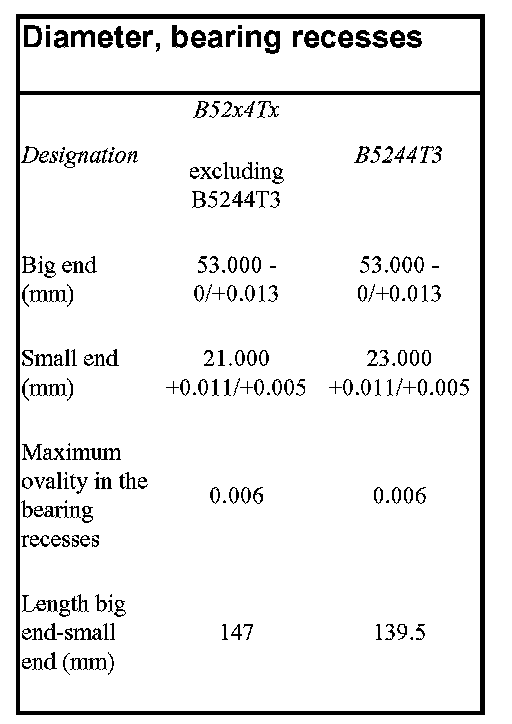

Bearing recess width 26.0 ± 0.1 mm

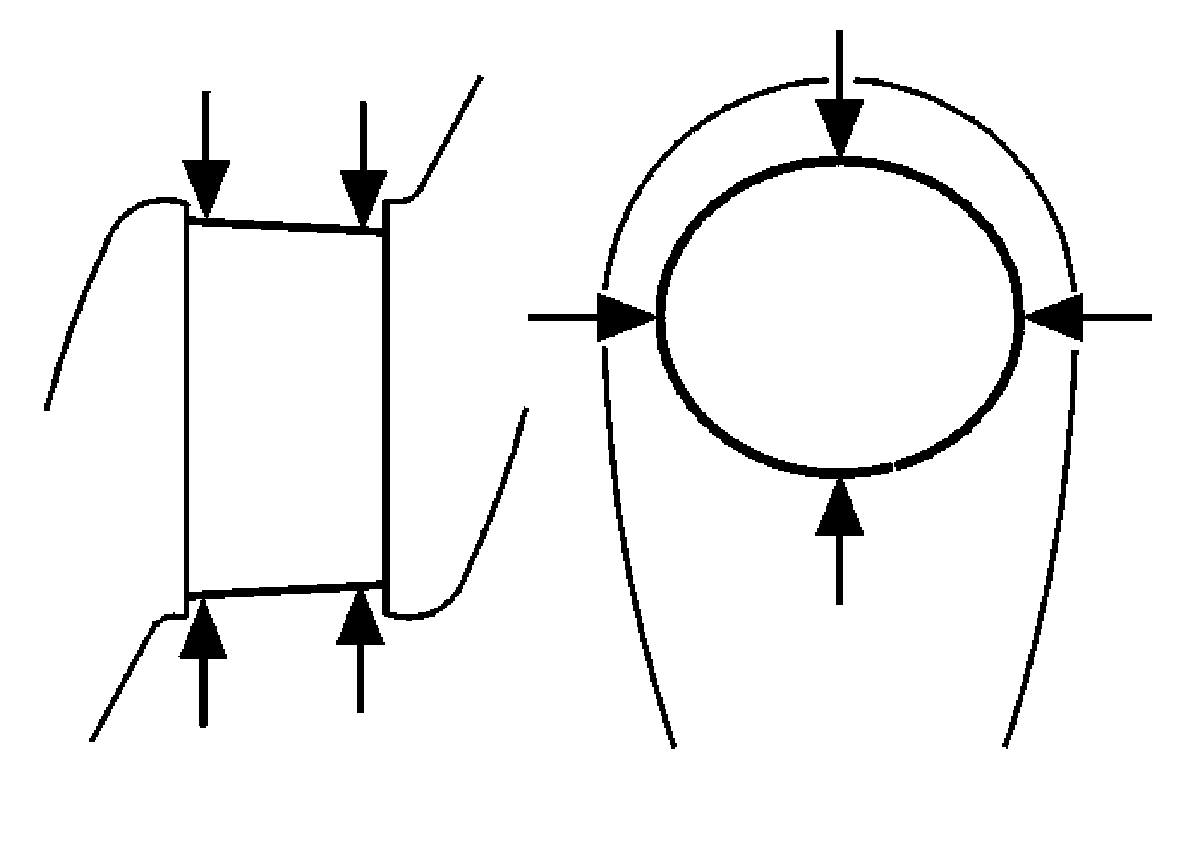

Maximum out-of-round 0.004 mm
Maximum taper 0.004 mm

(1) The variation in diameter for each bearing journal must not exceed 0.008 mm.

Main Bearing Journals













Diameter, standard (1) 65.000 +0.003/- 0.016 mm
Axial bearing width 26.00 +0/-0.04mm
Maximum out-of-round 0.004 mm
Maximum taper 0.004 mm

(1) The variation in diameter for each bearing journal must not exceed 0.008 mm.
