Fuel Filter: Service and Repair

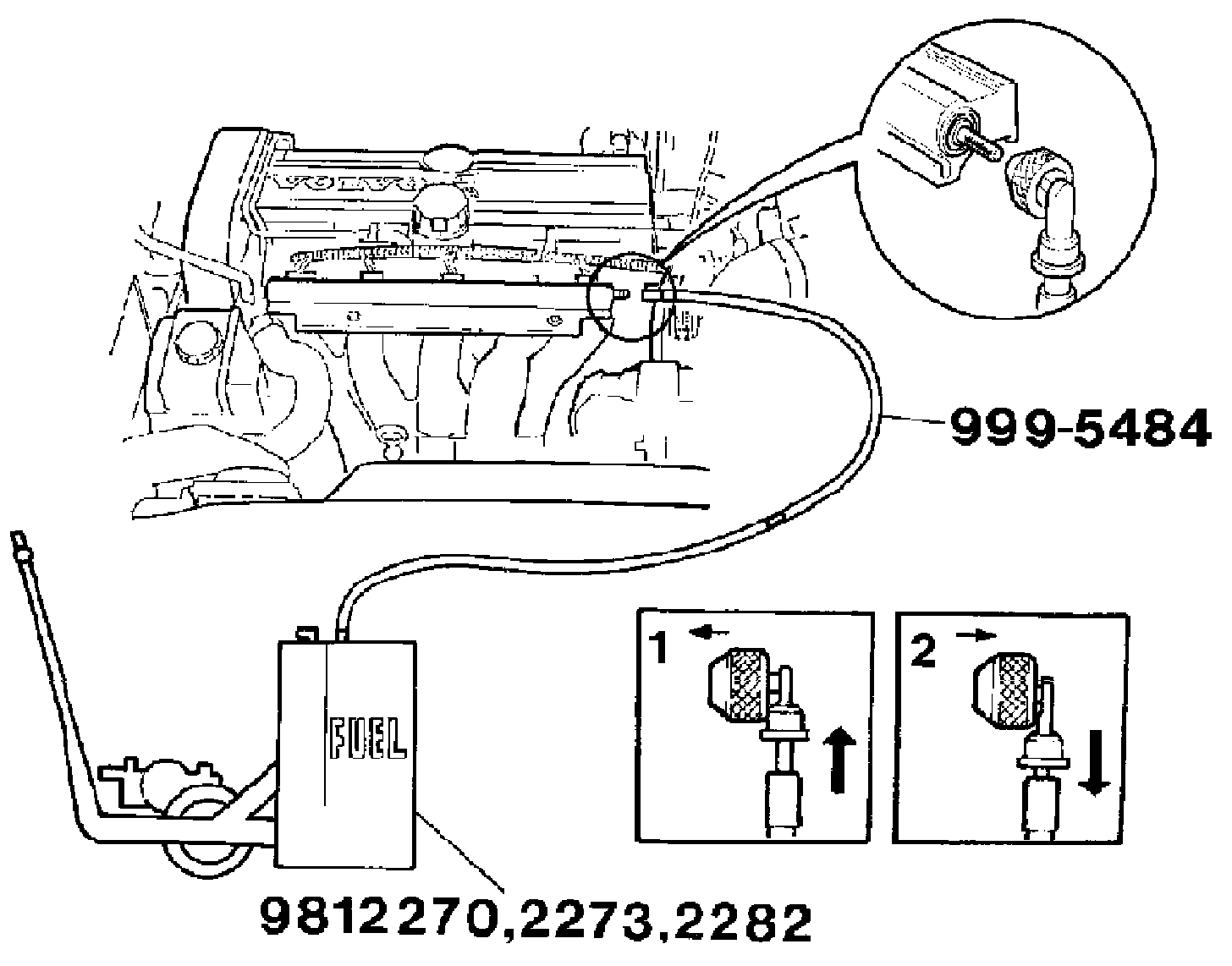

Replacing The Fuel Filter Removal Draining the fuel system -
Empty the fuel injection system according to Draining the fuel system.
Removing the fuel filter -

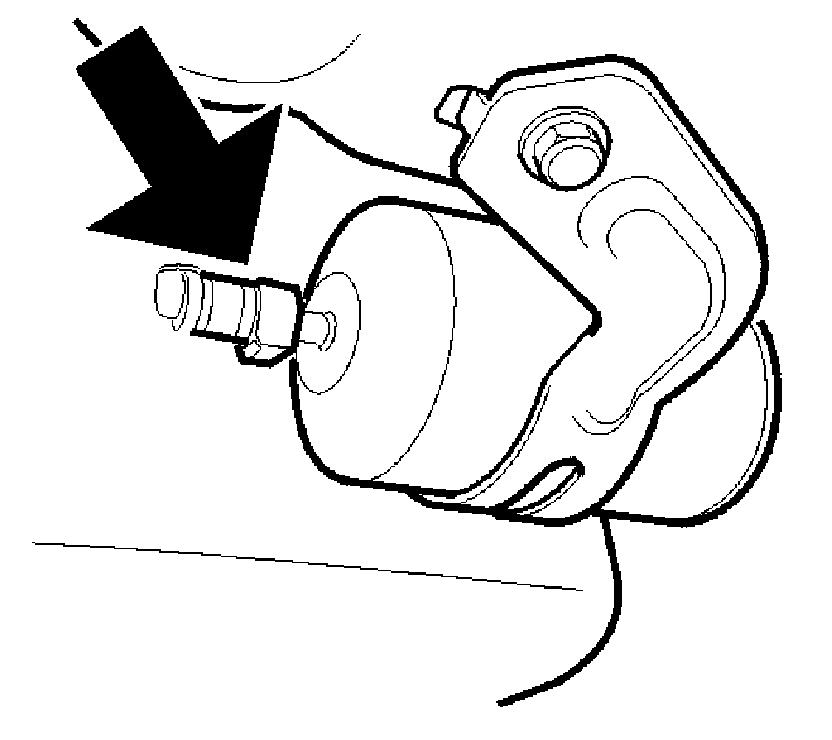

Remove the screw securing the clamp around the filter
-
Disconnect the quick-release connectors from the
fuel filter -
Replace the filter.
Installation Installing the fuel filter In reverse order.
Tighten the screw. Tighten to
25 Nm.
