Home >> Volvo >> 2005 >> S40 L5-2.4L VIN 38 B5244S4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Branching Point >> Branching Point 63/5 - 63/74 >> Branching Point 63/53

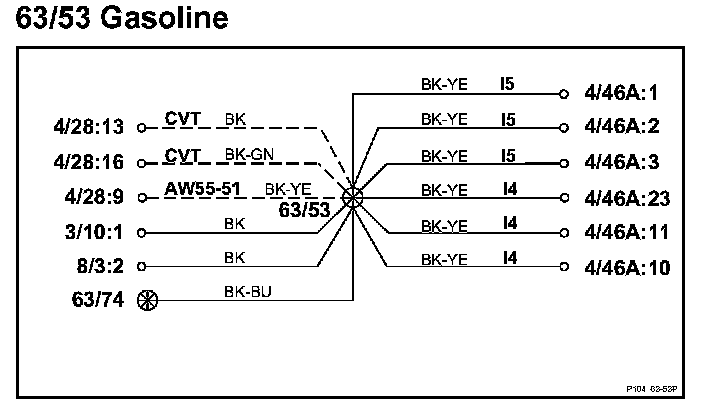

Branching Point 63/53

Branching Point 63/53:
