Fog Lamps

Fog lamps















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.






Fog lamps

Installing fog lamps




- Turn the ignition key to position 0
- Detach the panel at the bottom edge of the bumper cover on the right-hand side. First press down the two upper catches for the panel from the outside. Use a weatherstrip tool
- Carefully pry off the panel until the last catches release. Remove the panel. Do not damage the paintwork
- Place the panel to one side. There is a new panel in the kit.

Illustration A




- Disconnect the pre-routed connector for the fog lamp inside the removed panel
- Connect the connector to the fog lamp. Insert the fog lamp in position. Ensure that the two pins are inserted into the corresponding cut outs in the bumper cover.

Illustration B




- Install the two screws (from the kit). Tighten the fog lamp securely
- Repeat for the fog lamp on the other side.

Installing the keypad

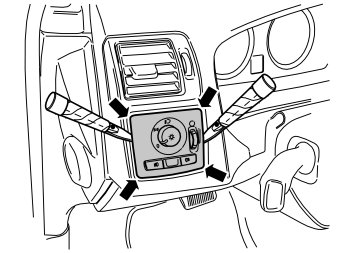

- Remove the keypad for the lighting. Carefully pry off the keypad from the dashboard. Use a weatherstrip tool. The keypad is secured by two catches on either side. Do not damage the dashboard.




- Disconnect the connector from the existing keypad. Remove the keypad. The keypad will not be used again
- Connect the connector to the new keypad (from the kit)
- Press the keypad into the dashboard.

Finishing work




- Set the height of the fog lamps using the adjustment screw.




- Install the new panels (from the kit) around the fog lamps in the bumper cover. Ensure that all the catches have engaged.
