Auxiliary Cabin Heater

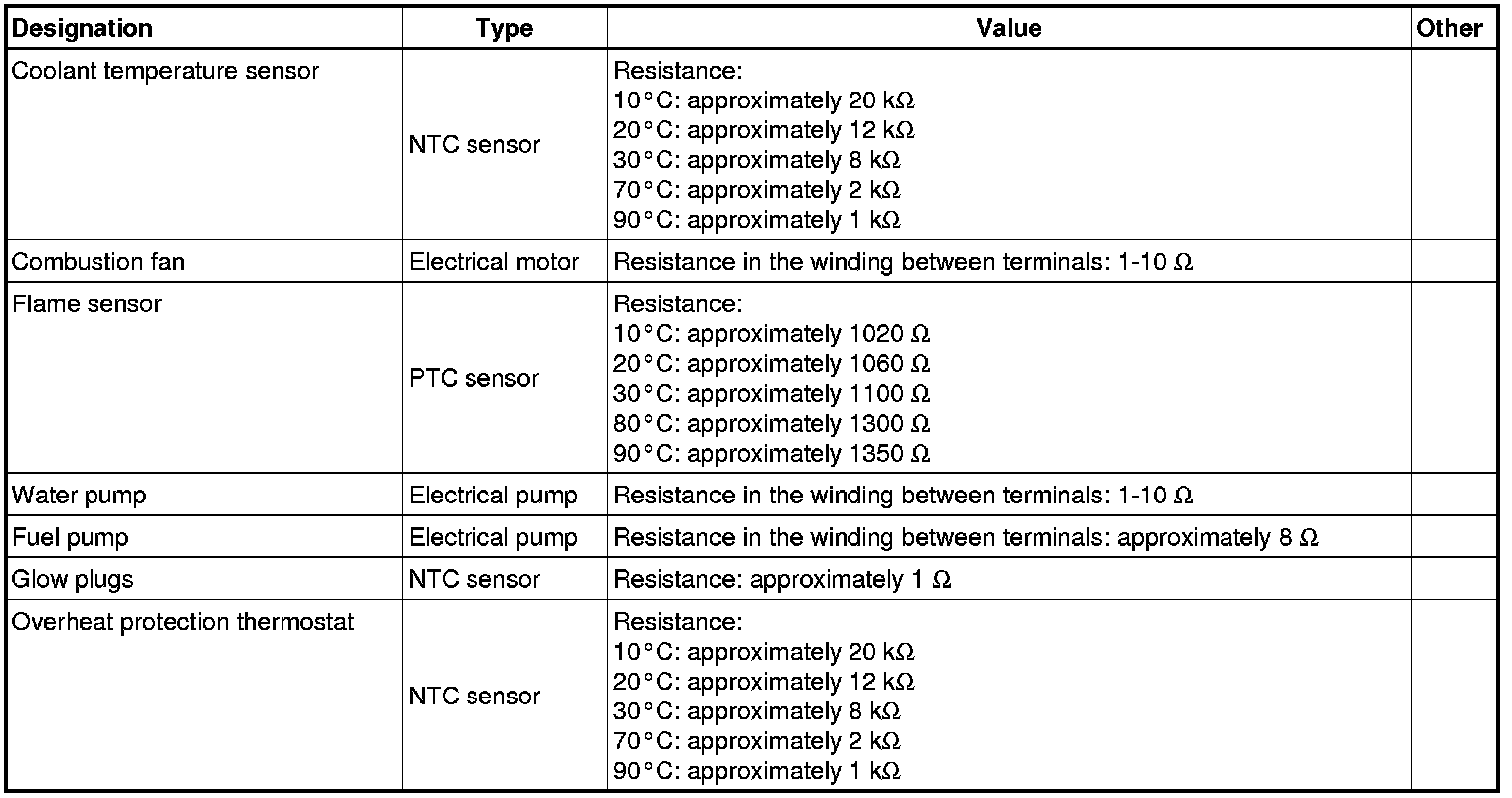

Component specification
The resistance values assume a temperature of +20°C unless otherwise stated.
