Tightening Torque

Tightening Specifications
Cylinder Head





Use new screws.
Lubricate all the screws.

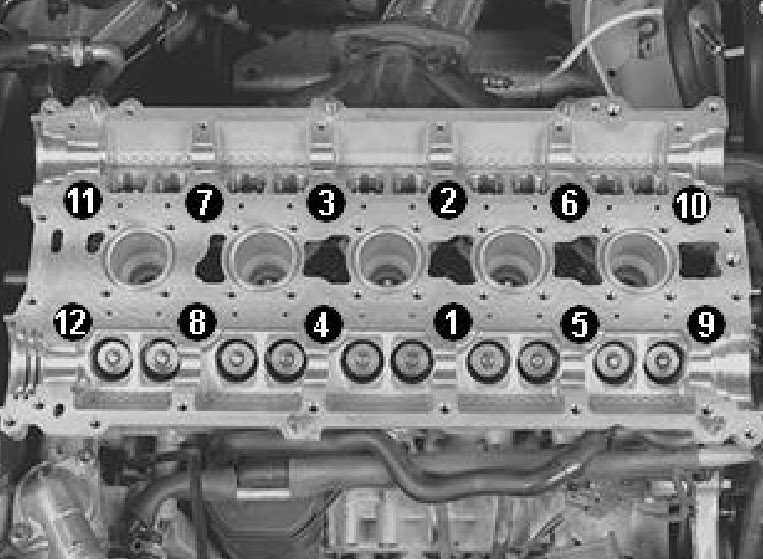

Tighten the screws in the order shown.
Tighten the screws alternately from the center and outwards.
1st Step 20 Nm
2nd Step 60 Nm
3rd Step Angle-tighten 130°

Intake Manifold
Torque 25 Nm

Exhaust Manifold
Torque 25 Nm

Camshaft Bearing Caps/Camshaft Cover
Refer to General Tightening Torque, see Engine, Specifications.
Refer to procedure for sequence. Service and Repair

Camshaft Timing Gear Pulley
Camshafts Without Variable Valve Timing 20 Nm
Camshafts With Variable Valve Timing 10 Nm
