Keyless Entry: Specifications

Component specification

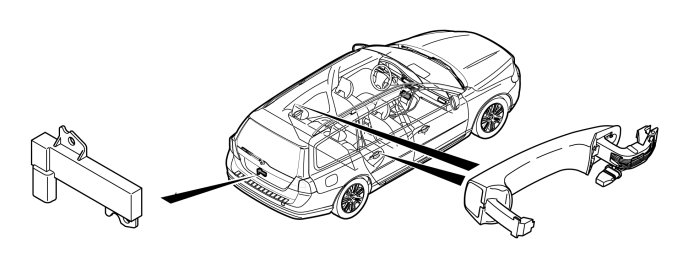

Outer antennas in rear door handle (3/275-276) and outer rear antenna (16/132)

General





Type
SPOL antennas

Characteristic
Resistance depends on outside temperature and the length of the cables in the vehicle. A guide value is approx. 10-30 ohms.
Resistance in the antenna should be 0 ohms or infinite.

Other information
Option.

Terminal










Check
Prerequisites (unless otherwise specified):
- Breakout box connected.
- Antenna connected

Check
Antenna
Measure the resistance between the antenna connections
The value should be 10-30 ohms.
The antennas can also be checked using a function in the control module.

Internal antennas in the passenger compartment

General





Type
SPOL antennas

Characteristic
Resistance depends on outside temperature and the length of the cables in the vehicle. A guide value is approx. 10-30 ohms
Resistance in the antenna should be 0 ohms or infinite.

Other information
Option.

Terminal










Terminal










Check
Prerequisites (unless otherwise specified):
- Breakout box connected.
- Antenna connected

Check
Antenna
Measure the resistance between the antenna connections
The value should be 10-30 ohms.
The antennas can also be checked using a function in the control module.
