Variable Valve Timing Actuator: Service and Repair

VVT unit






Removal

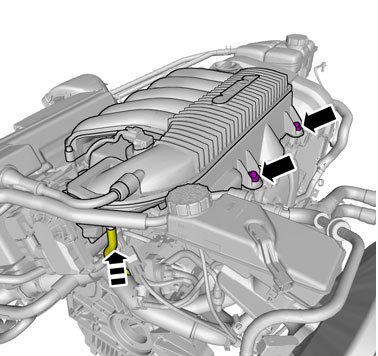

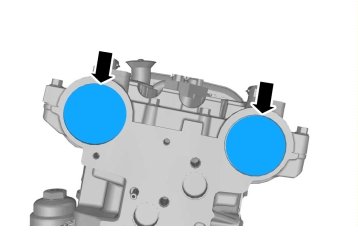

Remove the following items:
- Air filter module Refer to: Air filter module Service and Repair
- timing belt Refer to: Timing belt Replacing Timing Belt
- starter motor Refer to: Starter motor Service and Repair

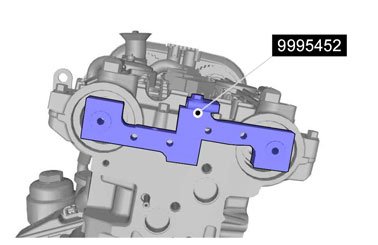

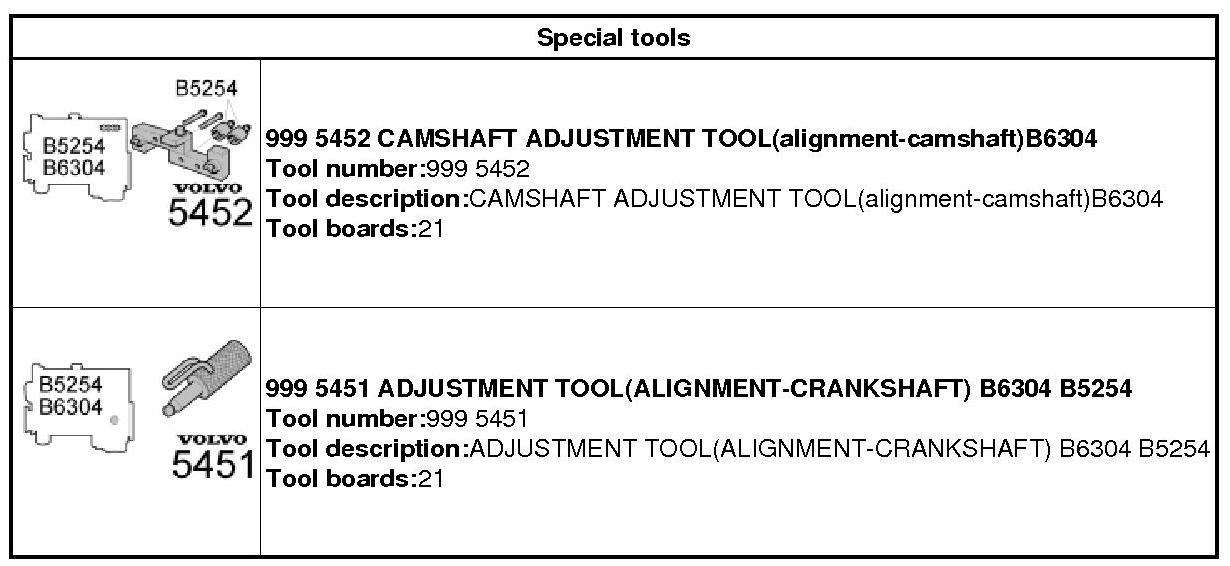

999 5452 CAMSHAFT ADJUSTMENT TOOL 999 5452 Camshaft Adjustment Tool





Installation





Note! Only tighten the bolts finger tight at this stage.

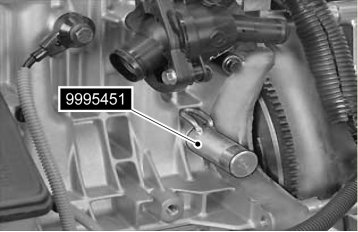

999 5451 ADJUSTMENT TOOL 999 5451 Adjustment Tool

Install timing belt Refer to: Timing belt Replacing Timing Belt

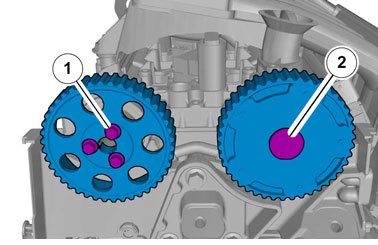

1. Torque: M6, 10 Nm

2. Torque: VVT unit, center screw, 120 Nm




1. Torque: M10, 50 Nm

2. Torque: M6, 10 Nm

Install the following items:
- starter motor Refer to: Starter motor Service and Repair
- timing belt Refer to: Timing belt Replacing Timing Belt




Torque: M6, 10 Nm




Torque: M6, 10 Nm

Install air filter module Refer to: Air filter module Service and Repair
