Sunroof / Moonroof: Service and Repair

Extended Roof Opening Panel Cassette

Removal

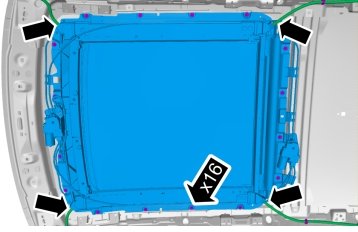

Remove the headliner with roof hatch




Torque: M6, 10 Nm

Installation

Install the headliner with roof hatch

Perform electric motor/Sun Roof Module (SRM), calibration Refer to: Electric motor / sun roof module (SRM), calibration Programming and Relearning

Perform roof hatch seal check Refer to: Leak testing the sun roof Component Tests and General Diagnostics
