Power Driver's Seat With Memory Function

Power Driver's Seat With Memory Function

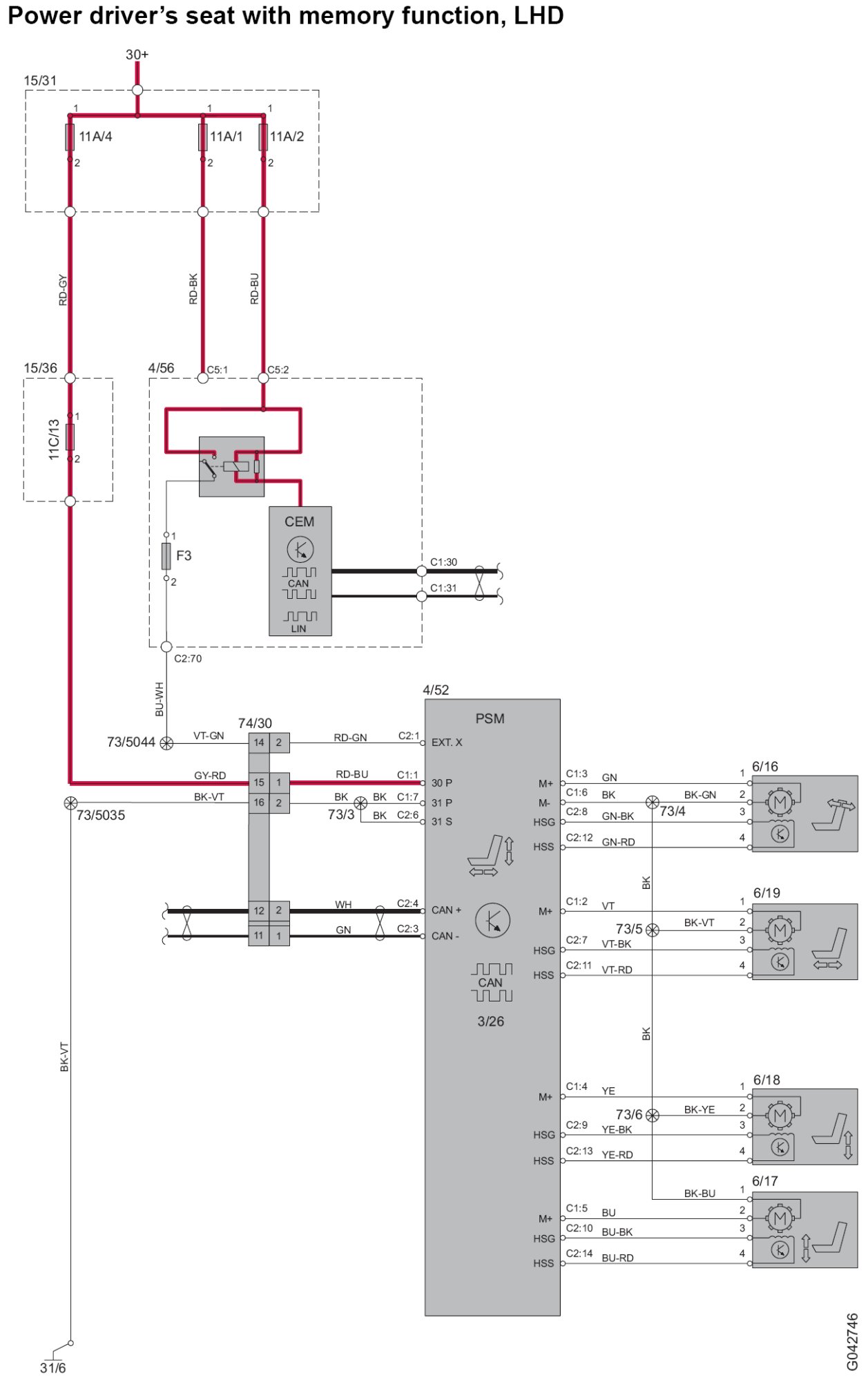

Power Driver's Seat With Memory Function, LHD:

Diagram Legend: Changes Introduced Up to and Including June 2009

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to and Including June 2009
