Component Location, Integrated Audio Module (IAM)

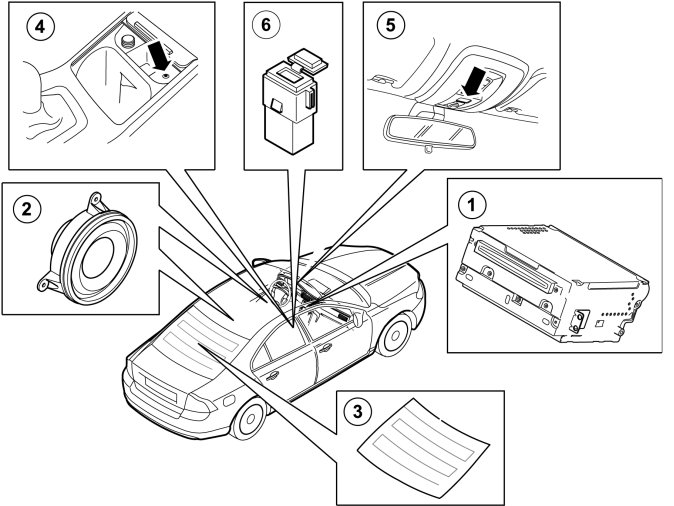

Location of componentsLocation Of Components:
Overview 1.
Integrated audio module (IAM).
2.
Speaker.
3.
AM/FM antenna.
4.
Auxiliary input (AUX).
5.
Microphone.
6.
USB/iPod-connection (XC60 as well as S80/V70/XC70 from structure week 200846)
