Bluetooth Control Module






Bluetooth control module

Operation number: 39420-2

Removal

Note! Removal steps in this procedure may contain installation details.





Remove glove compartment Refer to: Glove compartment Glove Compartment

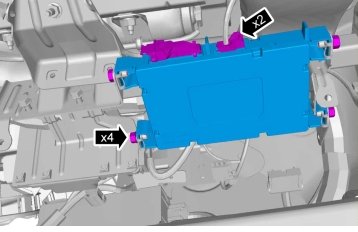

Note! Make sure that the component terminals are not bent or damaged.

Torque: M6, 10 Nm

Vehicles with cellular phone









Note! Make sure that the component terminals are not bent or damaged.

















All vehicles

Installation

To install, reverse the removal procedure.

Order and download appropriate softwear. Programming and Relearning
